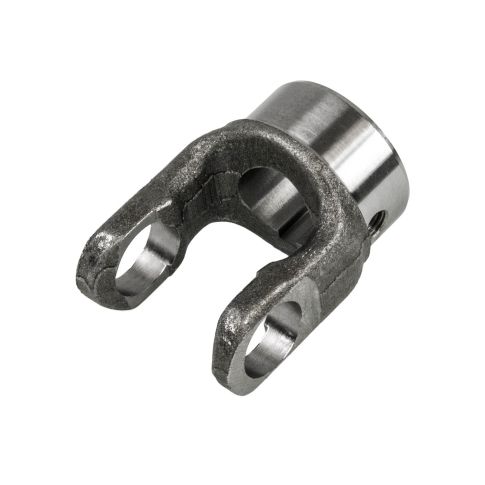

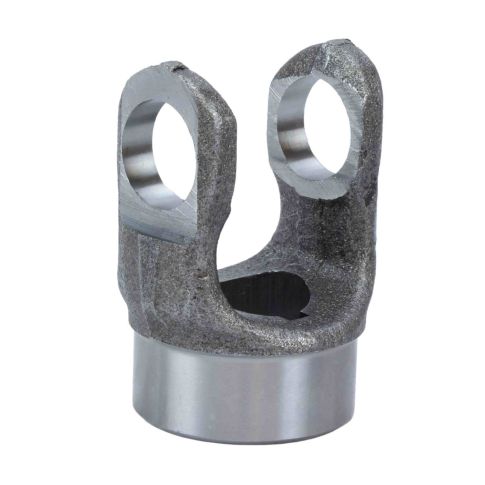

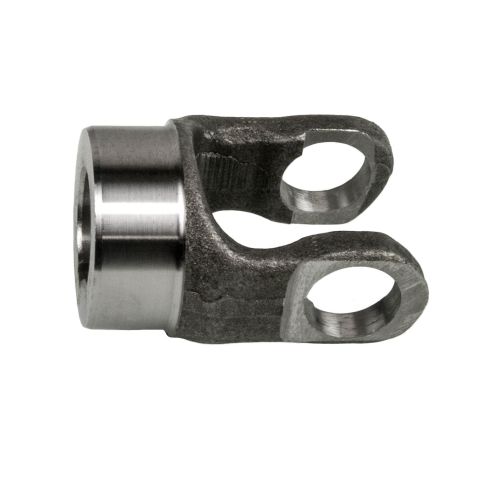

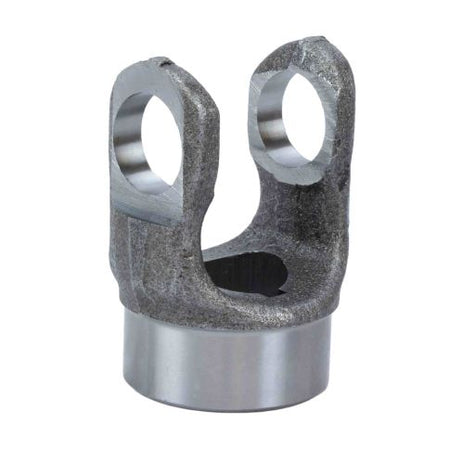

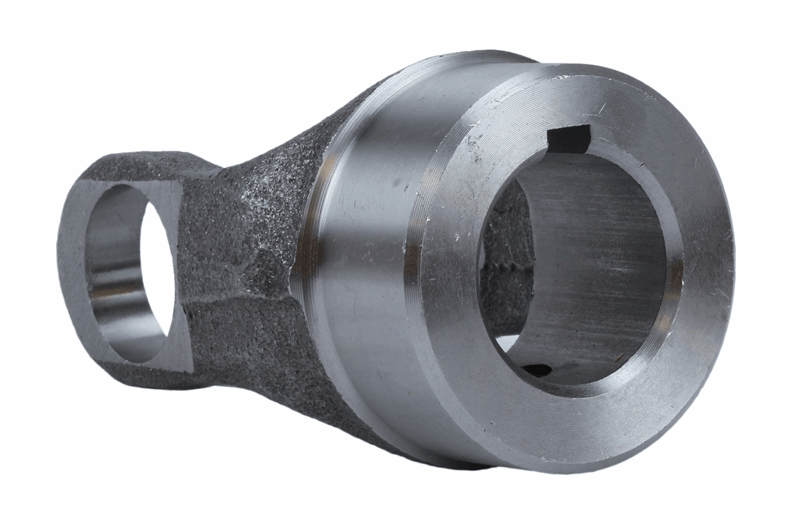

10-4-103 PTO End Yoke - AFTERMARKET
Couldn't load pickup availability
Round Hole Diameter: 1.125"SAE Keyway Width: 0.250"Hole Diamter: 0.375"Location Of Keyway: 9Location Of Set Screw: 3 Hub Diameter: 2.000"Length Thru Hole: 1.030"C/L To End Of Hub: 2.500"Style: ISR. CROSS REFERENCES: SP 10-4-103, 10-4103, 05196, 1527, 74103
DL-EY-1000-1.1250-ISR
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Centerline to End: 2.5 Inch
Ground Hub Diameter: 2 Inch
Involute Spline: No
Joint Angle: 60 Degrees
Keyway Width: .25 Inch
Length Thru Hole: 1.03 Inch
Material: Steel
Maximum Hub Diameter: 2 Inch
SAE Keyway Width: .25 Inch
Set Screw Hole Diameter: .375 Inch
Taxonomy A: Driveline
Taxonomy B: End Yokes/Pinion Yokes
Taxonomy C: 1000 Series
Type: Straight Round Hole
U Joint Cap Diameter: 1.125 Inch
Yoke Bearing Dimension: .938 Inch
Yoke Style: ISR
Warranty Period: 1 Year or 100,000 Miles
Replaces:
- OE Aftermarket: PT10-4-103
- OE Aftermarket: 05196
- Spicer: 10-4-103
- OE Aftermarket: 10-4103
- Neapco OE Series: 104103
- Meritor: 10N-4-103
- Meritor: 10N4-103
- Meritor: 10N4103
- OE Aftermarket: 1527
- Navistar: 1662280C
- Navistar: 1662280C1
- Navistar: 1662680C
- Navistar: 1662680C1
- Mack: 2104-104103
- OE Aftermarket: 74103
- PERMCO: DM10-4-103
- Muncie: EY161
- Genuine Newstar: S-D753
- Genuine Newstar: SD-10-4-103
- Genuine Newstar: SD753
- Freightliner: SP104103
10-4-103 Cross Reference
- Spicer: 10-4-103
- Neapco OE Series: 104103
- Meritor: 10N-4-103
- Meritor: 10N4-103
- Meritor: 10N4103
- MOOG Driveline Products: 1527
- Navistar: 1662280C
- Navistar: 1662280C1
- Navistar: 1662680C
- Navistar: 1662680C1
- Mack: 2104-104103
- Neapco OE Series: 5196
- OE Aftermarket: 74103
- Neapco OE Series: 804904
- PERMCO: DM10-4-103
- Muncie: EY161
- Genuine Newstar: S-D753
- Genuine Newstar: SD-10-4-103
- Genuine Newstar: SD753
- Freightliner: SP104103
