PTO Yoke
PTO Yoke
11966 PTO End Yoke - AFTERMARKET
Hex Hole Diameter: 1.125"Ground Hub Diameter: 2.000"Hole Diamter: 0.375"Location Of Keyway: 3 C/L To End Of Hub: 2.500". CROSS REFERENCES: SP 10-4-32, 10-0432, 10-4-32R, 1540, 7432
$ 18.69
2-4-473 PTO End Yoke - AFTERMARKET
Round Hole Diameter: 1.000"SAE Keyway Width: 0.250"Hole Diamter: 0.375"Location Of Keyway: 12Location Of Set Screw: 6 & 12Hub Diameter: 2.125"C/L To End Of Hub: 2.562"Style: SR. CROSS REFERENCES: SP 2-4-473, N2-4-473, 1310-4-473, VTC-773D
$ 26.64
10-4-103 PTO End Yoke - AFTERMARKET
Round Hole Diameter: 1.125"SAE Keyway Width: 0.250"Hole Diamter: 0.375"Location Of Keyway: 9Location Of Set Screw: 3 Hub Diameter: 2.000"Length Thru Hole: 1.030"C/L To End Of Hub: 2.500"Style: ISR. CROSS REFERENCES: SP 10-4-103, 10-4103, 05196, 1527, 74103
$ 19.34
23288 PTO End Yoke - AFTERMARKET
Round Hole Diameter: 0.875"SAE Keyway Width: 0.250"Hole Diamter: 0.375"Location Of Keyway: 3Location Of Set Screw: 9 Hub Diameter: 1.625"C/L To End Of Hub: 2.500"Style: ISR. CROSS REFERENCES: SP 10-4-63, 10-0463, 1516, DM10-4-63, PT10-4-63
$ 16.92
10-4-0123 PTO End Yoke - AFTERMARKET
Round Hole Diameter: 1.250"SAE Keyway Width: 0.312"Hole Diamter: 0.375"Location Of Keyway: 3Location Of Set Screw: 9Hub Diameter: 2.000"Length Thru Hole: 1.030"C/L To End Of Hub: 2.500"Style: ISR. CROSS REFERENCES: SP 10-4-123, 10-4123, N10-4-123, 10-4-123R, VTC-6318
$ 15.87

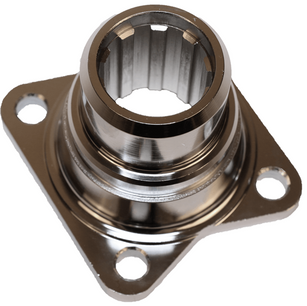

3-1-3431 PTO Flange Yoke - AFTERMARKET
Spline Size: 1.500" - 101410 Series 880 PTO's825 (HD) Series (Replacement For Chelsea 880 Series)Spline Hole Major Diameter: 1.500"Pilot Diameter (Male Or Female): 2.750" (Female)Bolt Circle Diameter: 3.750"Bolt Hole Diameter (Drilled Or Tapped): 0.438" (Drilled)Number Of Holes: 4Brake Drum Pilot...
$ 179.58
10-4-193 PTO End Yoke - AFTERMARKET
Round Hole Diameter: 1.250"SAE Keyway Width: 0.312"Hole Diamter: 0.375"Location Of Keyway: 9Location Of Set Screw: 12 Hub Diameter: 2.000"C/L To End Of Hub: 2.500"Style: ISR. CROSS REFERENCES: SP 10-4-193, 10-4193, DM10-4-193, PT10-4-193, VTC-770D
$ 22.91

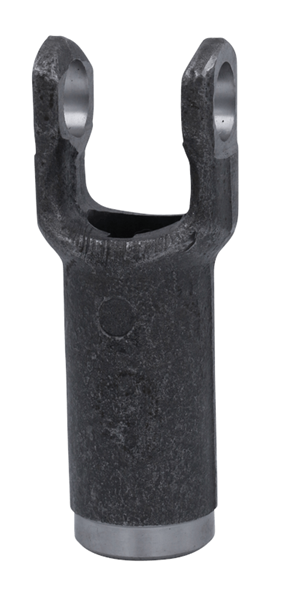

10-3-18KX PTO Slip Yoke - AFTERMARKET
Spline Size: 1.250" - 16Center To End Of Spline: 5.500"Bearing Cap Diameter: 0.940"Length Of Hole: 4.030"Yoke Dimension Across Ears: 1.500"Style: SR. CROSS REFERENCES: SP 10-3-18KX, 10-0318, DM10-3-18KX, N10318KX, VTC-763D
$ 39.50
3-4-283 PTO End Yoke - AFTERMARKET
Round Hole Diameter: 1.250"SAE Keyway Width: 0.314"Hole Diamter:0.375"Location Of Keyway: 12Location Of Set Screw: 6Hub Diameter: 2.250"Length Thru Hole: 1.500"C/L To End Of Hub: 3.000"Style: BS. CROSS REFERENCES: SP 3-4-283, VTC-774D
$ 82.25
2-4-0573 PTO End Yoke - AFTERMARKET
Round Hole Diameter: 1.250"SAE Keyway Width: 0.250"Hole Diamter: 0.375"Location Of Keyway: 12Location Of Set Screw: 6Hub Diameter: 2.125"C/L To End Of Hub: 2.562"Style: SR. CROSS REFERENCES: N2-4-573, VTC-75991
$ 20.00
2-4-0503 PTO End Yoke - AFTERMARKET
Round Hole Diameter: 1.125"SAE Keyway Width: 0.250"Hole Diamter: 0.375"Location Of Keyway: 12Location Of Set Screw: 6Hub Diameter: 2.125"C/L To End Of Hub: 2.562"Style: SR. CROSS REFERENCES: SP 2-4-503, N2-4-503, VTC-3139
$ 24.26
41551 PTO End Yoke - AFTERMARKET
Round Hole Diameter: 0.750"SAE Keyway Width: 0.188"Hole Diamter: 0.375"Location Of Keyway: 3Location Of Set Screw: 6 Hub Diameter: 1.625"Length Thru Hole: 1.030"C/L To End Of Hub: 2.500"Style: ISR. CROSS REFERENCES: 10-0413, 05111, 1511, VTC-36711
$ 21.23
10-4-23 PTO End Yoke - AFTERMARKET
Round Hole Diameter: 0.750"SAE Keyway Width: 0.250"Hole Diamter: 0.375"Location Of Keyway: 3Location Of Set Screw: 9Hub Diameter: 1.625"Length Thru Hole: 1.030"C/L To End Of Hub: 2.500"Style: ISR. CROSS REFERENCES: SP 10-4-23, 10-0423, 051B8, DM10-4-23, NP10-0423
$ 21.29
2-4-783 PTO End Yoke - AFTERMARKET
Round Hole Diameter: 1.250"SAE Keyway Width: 0.313"Hole Diamter: 0.375"Location Of Keyway: 12Location Of Set Screw: 6Hub Diameter: 2.120"C/L To End Of Hub: 2.940"Style: UB. CROSS REFERENCES: SP 2-4-783, N2-4-783, VTC-606B
$ 60.15
10-4-282 PTO End Yoke - AFTERMARKET
Hex Hole Diameter: 0.875"Ground Hub Diameter: 2.000"Hole Diamter: 0.375"Location Of Keyway: 3 C/L To End Of Hub: 2.500". CROSS REFERENCES: SP 10-4-282, 10-4282, 74282, DM10-4-282, NP10-4282
$ 16.94
2-4-0533 PTO End Yoke - AFTERMARKET
Round Hole Diameter: 1.250"SAE Keyway Width: 0.312"Hole Diamter: 0.375"Location Of Keyway: 12Location Of Set Screw: 6Hub Diameter: 2.125"C/L To End Of Hub: 2.562" Style: SR. CROSS REFERENCES: SP 2-4-533, 2-4-533, DM2-4-533, VTC-3149
$ 25.35
10-3-22X PTO Slip Yoke - AFTERMARKET
Center To End Of Spline: 5.50"Bearing Cap Diameter: 1.31"Bore Type: SquareBore Diameter: 0.88"Bore Length: 4.19"Hub Diameter: 1.63"Hole Size: 0.25"28thYoke Dimension Across Ears: 2.19"Location Viewed From Hub End: 9-GapDistance From End Of Hub: 1.75". CROSS REFERENCES: SP 10-3-22X, 10-0322, 10-3-22R, 7322,...
$ 26.24
19271 PTO End Yoke - AFTERMARKET
Hex Hole Diameter: 1.000"Ground Hub Diameter: 2.000"Hole Diamter: 0.375"Location Of Keyway: 3 C/L To End Of Hub: 2.500". CROSS REFERENCES: 10-0452, 10-4-52R, VTC-36731, DM10-4-52
$ 16.77
34246 PTO End Yoke - AFTERMARKET
Round Hole Diameter: 1.000"SAE Keyway Width: 0.250"Hole Diamter: 0.375"Location Of Keyway: 3Location Of Set Screw: 9 Hub Diameter: 2.000"Length Thru Hole: 1.030"C/L To End Of Hub: 2.500"Style: ISR. CROSS REFERENCES: SP 10-4-93, 10-0493, 05115, 10-4-93R, 1521
$ 14.91
10-4-113 PTO End Yoke - AFTERMARKET
Round Hole Diameter: 1.125"SAE Keyway Width: 0.312"Hole Diamter: 0.375"Location Of Keyway: 3Location Of Set Screw: 9 Hub Diameter: 2.000"Length Thru Hole: 1.030"C/L To End Of Hub: 2.500"Style: ISR. CROSS REFERENCES: SP 10-4-113, 10-4113, 05116, 10-4-113, 1526
$ 22.14
19636 PTO End Yoke - AFTERMARKET
Round Hole Diameter: 0.875"SAE Keyway Width: 0.188"Hole Diamter: 0.375"Location Of Keyway: 3Location Of Set Screw: 9 Hub Diameter: 1.625"Length Thru Hole: 1.030"C/L To End Of Hub: 2.500"Style: ISR. CROSS REFERENCES: 10-0453, 1000-4-53, VTC-36741, 05136
$ 28.77
10-3-163X PTO Slip Yoke - AFTERMARKET
Center To End Of Spline: 5.50"Bearing Cap Diameter: 1.31"Bore Type: RoundBore Diameter: 1.25"Bore Length: 4.19"Hub Diameter: 2.00"Keyway Width: 0.31"Keyway Location: 3-GapHole Size: 0.25"28thYoke Dimension Across Ears: 2.19"Location Viewed From Hub End: 9-GapDistance From End Of Hub: 1.75". CROSS REFERENCES: SP...
$ 41.85
10-4-183 PTO End Yoke - AFTERMARKET
Round Hole Diameter: 1.250"SAE Keyway Width: 0.250"Hole Diamter: 0.375"Location Of Keyway: 9Location Of Set Screw: 12 Hub Diameter: 2.000"Length Thru Hole: 1.030"C/L To End Of Hub: 2.500"Style: ISR. CROSS REFERENCES: SP 10-4-183, 10-4183, 051D2, 1552, 74183
$ 22.04
10-4-12 PTO End Yoke - AFTERMARKET
Hex Hole Diameter: 0.875"Ground Hub Diameter: 1.969"Hole Diamter: 0.375"Location Of Keyway: 3 C/L To End Of Hub: 2.500". CROSS REFERENCES: SP 10-4-12, 10-0412, 1537, 7412, PT10-4-12
$ 23.93
