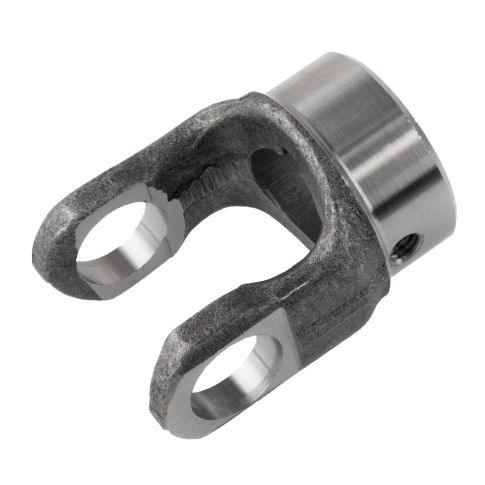

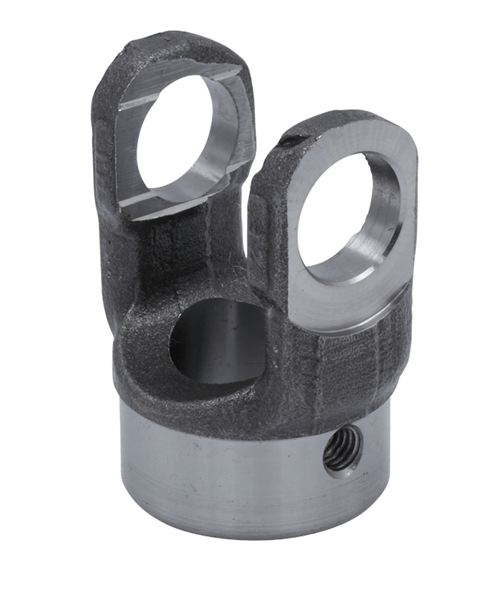

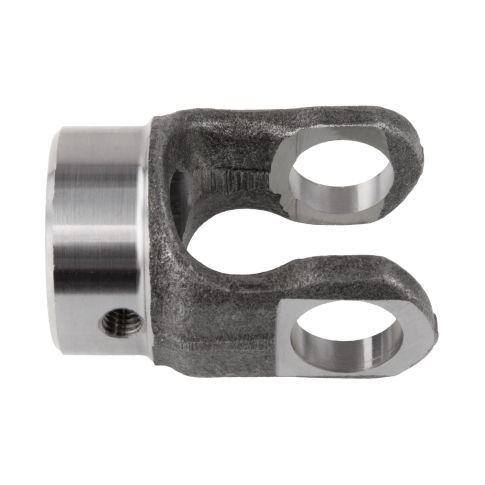

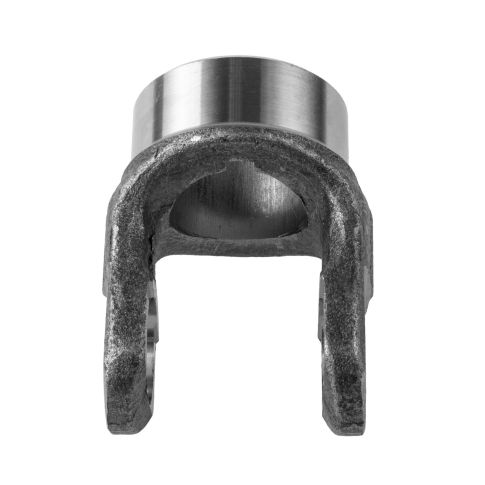

10-4-183 PTO End Yoke - AFTERMARKET

Out of stock
SKU: 10-4-183R
$ 21.75

Round Hole Diameter: 1.250"SAE Keyway Width: 0.250"Hole Diamter: 0.375"Location Of Keyway: 9Location Of Set Screw: 12 Hub Diameter: 2.000"Length Thru Hole: 1.030"C/L To End Of Hub: 2.500"Style: ISR. CROSS REFERENCES: SP 10-4-183, 10-4183, 051D2, 1552, 74183

Brand: World American
DL-EY-1000-1.2500-ISR
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Centerline to End: 2.5 Inch
Hole Diameter: 1.25 Inch
Involute Spline: No
Joint Angle: 60 Degrees
Keyway Width: .25 Inch
Length Thru Hole: 1.03 Inch
Material: Steel
Maximum Hub Diameter: 2 Inch
SAE Keyway Width: .25 Inch
Set Screw Hole Diameter: .375 Inch
Taxonomy A: Driveline
Taxonomy B: End Yokes/Pinion Yokes
Taxonomy C: 1000 Series
Type: Straight Round Hole
Yoke Bearing Dimension: .938 Inch
Yoke Style: ISR

Warranty Period: 1 Year or 100,000 Miles

Replaces:

  • OE Aftermarket: PT104-183
  • OE Aftermarket: 051D2
  • Spicer: 10-4-183
  • OE Aftermarket: 10-4183
  • Meritor: 10N-4-183
  • Meritor: 10N4-183
  • OE Aftermarket: 1552
  • OE Aftermarket: 74183
  • PERMCO: DM10-4-183
  • Muncie: EY183
  • Genuine Newstar: S-D769
  • Genuine Newstar: SD-10-4-183
  • Genuine Newstar: SD769

10-4-183 Cross Reference

  • Neapco OE Series: 051D2
  • Spicer: 10-4-183
  • Meritor: 10N-4-183
  • Meritor: 10N4-183
  • MOOG Driveline Products: 1552
  • OE Aftermarket: 74183
  • Neapco OE Series: 834124
  • PERMCO: DM10-4-183
  • Muncie: EY183
  • Genuine Newstar: S-D769
  • Genuine Newstar: SD-10-4-183
  • Genuine Newstar: SD769
