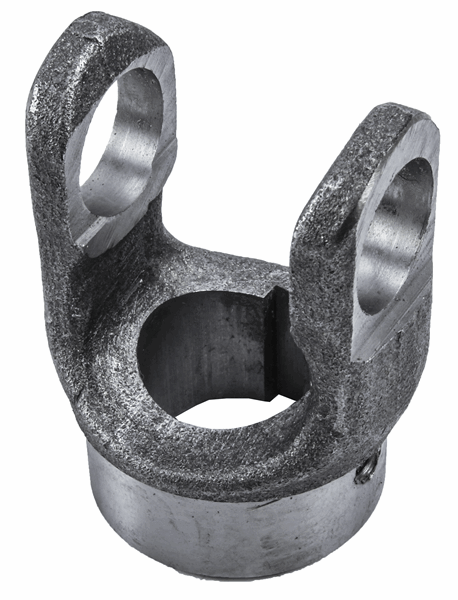

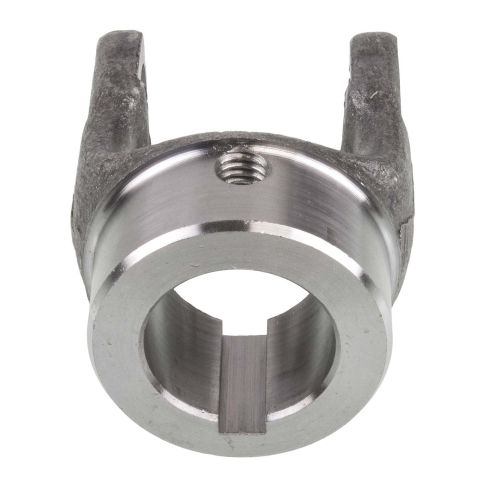

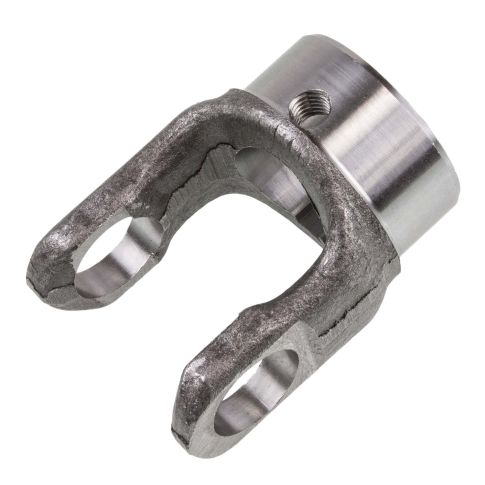

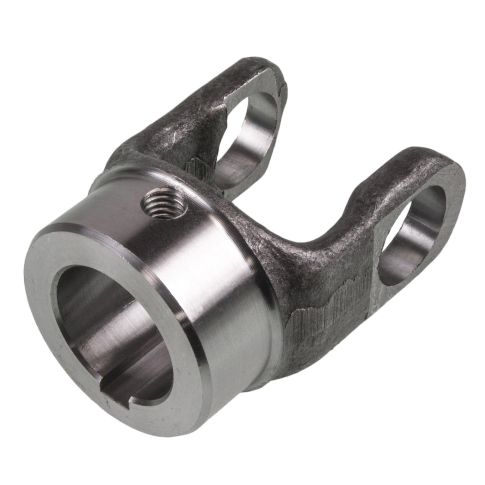

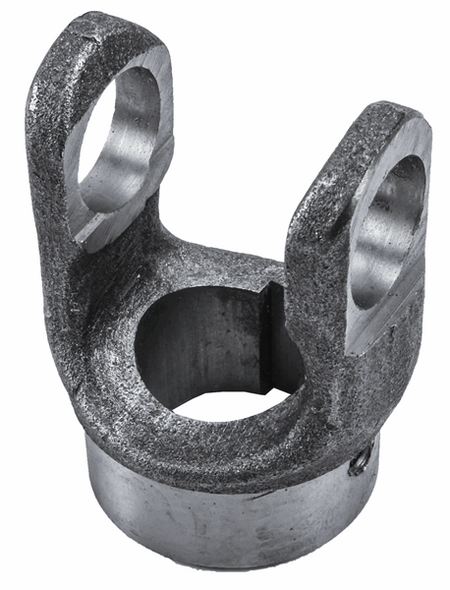

10-4-193 PTO End Yoke - AFTERMARKET

In stock
SKU: 10-4-193R
Regular price $ 22.99

Round Hole Diameter: 1.250"SAE Keyway Width: 0.312"Hole Diamter: 0.375"Location Of Keyway: 9Location Of Set Screw: 12 Hub Diameter: 2.000"C/L To End Of Hub: 2.500"Style: ISR. CROSS REFERENCES: SP 10-4-193, 10-4193, DM10-4-193, PT10-4-193, VTC-770D

Brand: World American
DL-EY-1000-1.2500-ISR
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Centerline to End: 2.5 Inch
Hole Diameter: 1.25 Inch
Involute Spline: No
Keyway Width: .312 Inch
Material: Steel
Maximum Hub Diameter: 1.5 Inch
SAE Keyway Width: .312 Inch
Set Screw Hole Diameter: .375 Inch
Taxonomy A: Driveline
Taxonomy B: End Yokes/Pinion Yokes
Taxonomy C: 1000 Series
Type: Straight Round Hole
Yoke Bearing Dimension: .938 Inch
Yoke Style: ISR

Warranty Period: 1 Year or 100,000 Miles

Replaces:

  • OE Aftermarket: PT10-4-193
  • Spicer: 10-4-193
  • OE Aftermarket: 10-4193
  • Meritor: 10N-4-193
  • Meritor: 10N4-193
  • PERMCO: DM10-4-193
  • Genuine Newstar: S-D770
  • Genuine Newstar: SD-10-4-193
  • Genuine Newstar: SD770

10-4-193 Cross Reference

  • Spicer: 10-4-193
  • Meritor: 10N-4-193
  • Meritor: 10N4-193
  • Neapco OE Series: 837777
  • PERMCO: DM10-4-193
  • Genuine Newstar: S-D770
  • Genuine Newstar: SD-10-4-193
  • Genuine Newstar: SD770
