1R11-028 Air Spring - AFTERMARKET
Couldn't load pickup availability

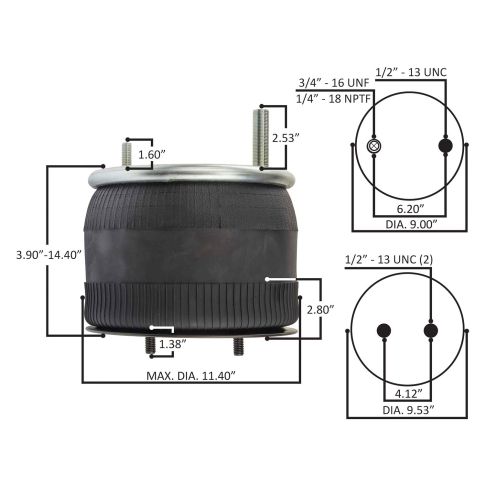

Extended length:13.00"Compressed length: 3.70"Rolling lobePlastic base. CROSS REFERENCES: ABP N32 019422, GYR 1R11 028, M7-8422, FLT1R11028, VTTAS9422, 9422
AIR SPRING RL PB
Air Spring Type: Rolling Lobe
Base Plate Material: Plastic
Bottom Plate Alignment: Parallel
Bottom Plate Bolt Hole Quantity: 2
Bottom Plate Center to Center: 4.12 Inch
Bottom Plate Diameter: 9.53 Inch
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Design Height: 8 Inch
Load Rating at 100 PSI: 6060 Pound
Load Rating at 80 PSI: 4820 Pound
Maximum Diameter: 9.12
Maximum Height: 13.3 Inch
Minimum Height: 3.8 Inch
Natural Frequency: 80 Hertz
Taxonomy A: Air Springs/Bags
Taxonomy B: Tractor
Taxonomy C: Rolling Lobe
Top Plate Bolt Hole Quantity: 2
Top Plate Center to Center: 6.2 Inch
Top Plate Diameter: 9 Inch
Warranty Period: 1 Year or 100,000 Miles
Replaces:
- OE Aftermarket: G2299422200
- Batco: 10-99422
- Ridewell Corp: 1003589422C
- Goodyear: 1R11-028
- Volvo Truck: 3130496
- Dayton Parts: 352-9422
- Triangle Air Springs: 4332
- Dayton Parts: 452-9422
- Dayton Parts: 452-9422L
- Navistar: 554762C
- Navistar: 554762C1
- Automann: 566.ER9422
- Holland: 57009422
- Continental-ContiTech: 64255
- Continental-ContiTech: 9 9-12 P 314
- Firestone: 9422
- Continental-ContiTech: 9912P314
- Firestone: 99422
- Automann: AB1DK20D-9422
- Freightliner: ABP N32 019422
- Automann: AM9422
- Automann: AMAB1DK20D-9422
- Automann: AMAB1DK20D9422
- Watson & Chalin: AS-0017
- Triangle Air Springs: AS-4332
- Paccar Parts: AS94220
- Euclid: E-FS9422
- Freightliner: FI W01 358 9422
- Fleetrite: FLT1R11028
- Meritor: FS9422
- Freightliner: GYR 1R11 028
- Genuine Newstar: GYR-1R11-028
- Kenworth: K303-14
- Kenworth: K303-15
- Kenworth: K303-6
- BWP: M-3525
- OE Aftermarket: M7-8422
- Meritor: RFS9422
- Hendrickson: S-13032
- Genuine Newstar: S-25967
- Genuine Newstar: S25967
- Leland Brake & Wheel Parts: SC2050
- Torque: TR9422
- Firestone: W01-358-9422
- World American: WA01-9422
- World American: WA01-R11028
1R11-028 Cross Reference
- Batco: 10-99422
- Ridewell Corp: 1003589422C
- Goodyear: 1R11-028
- Volvo Truck: 3130496
- Dayton Parts: 352-9422
- Triangle Air Springs: 4332
- Dayton Parts: 452-9422
- Dayton Parts: 452-9422L
- Navistar: 554762C
- Navistar: 554762C1
- Automann: 566.ER9422
- Holland: 57009422
- Continental-ContiTech: 64255
- Continental-ContiTech: 9 9-12 P 314
- Firestone: 9422
- Continental-ContiTech: 9912P314
- Firestone: 99422
- Automann: AB1DK20D-9422
- Freightliner: ABP N32 019422
- Automann: AM9422
- Automann: AMAB1DK20D-9422
- Automann: AMAB1DK20D9422
- Watson & Chalin: AS-0017
- Triangle Air Springs: AS-4332
- Paccar Parts: AS94220
- Euclid: E-FS9422
- Freightliner: FI W01 358 9422
- Fleetrite: FLT1R11028
- Meritor: FS9422
- Freightliner: GYR 1R11 028
- Genuine Newstar: GYR-1R11-028
- Kenworth: K303-14
- Kenworth: K303-15
- Kenworth: K303-6
- BWP: M-3525
- OE Aftermarket: M7-8422
- Meritor: RFS9422
- Hendrickson: S-13032
- Genuine Newstar: S-25967
- Genuine Newstar: S25967
- Leland Brake & Wheel Parts: SC2050
- Torque: TR9422
- Firestone: W01-358-9422
- World American: WA01-9422
- World American: WA01-R11028
