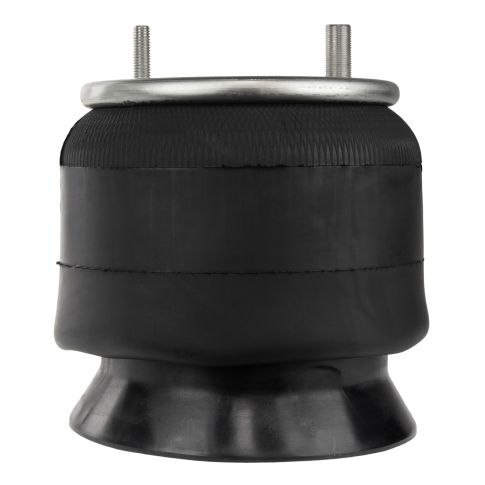

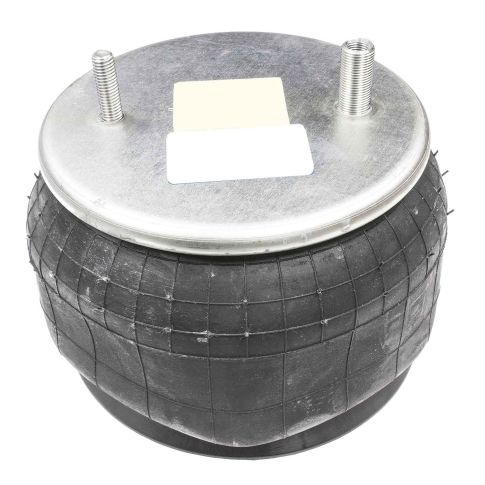

1R12-1047 Air Spring - AFTERMARKET
Couldn't load pickup availability

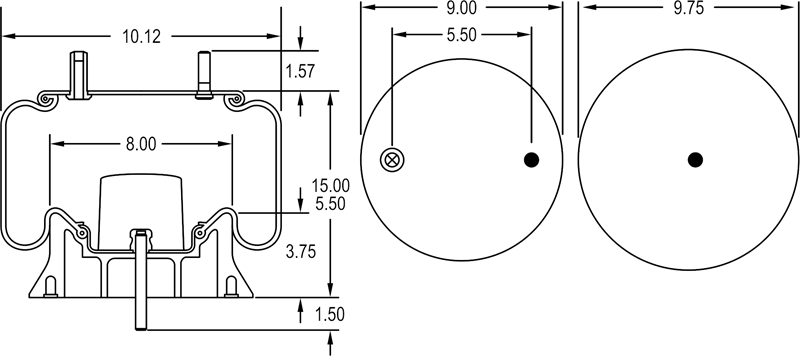

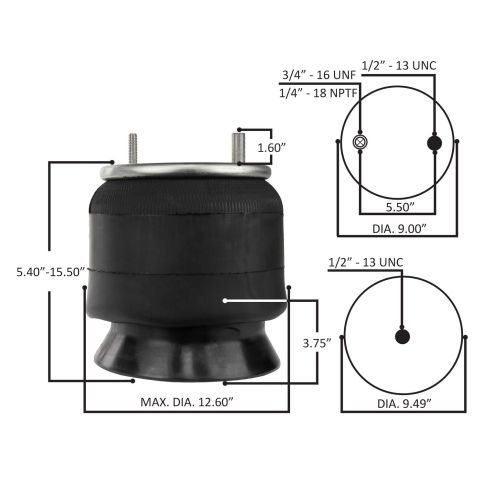

Neway/Holland NS190, NS400 & 450 Air Applications Watson & Chalin AS-0054 Assembly Extended Length: 15.00"Compressed Length: 5.50". CROSS REFERENCES: GYR 1R12 487, 90557372, VTTAS9366
AIR SPRING RL PB
Air Spring Type: Rolling Lobe
Base Plate Material: Aluminum
Bottom Plate Alignment: Parallel
Bottom Plate Bolt Hole Quantity: 1
Bottom Plate Center to Center: 2.25 Inch
Bottom Plate Diameter: 9.5 Inch
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Design Height: 9 Inch
Load Rating at 100 PSI: 7050 Pound
Load Rating at 80 PSI: 5640 Pound
Maximum Diameter: 10.12 Inch
Maximum Height: 15 Inch
Minimum Height: 5.5 Inch
Natural Frequency: 82 Hertz
Taxonomy A: Air Springs/Bags
Taxonomy B: Trailer
Taxonomy C: Rolling Lobe
Top Plate Bolt Hole Quantity: 2
Top Plate Center to Center: 5.5 Inch
Top Plate Diameter: 9 Inch
Warranty Period: 1 Year or 100,000 Miles
Replaces:
- OE Aftermarket: G2299366200
- Batco: 10-99366
- OE Aftermarket: 14849-HDV9366
- Goodyear: 1R12-487
- Dayton Parts: 352-9366
- Dayton Parts: 452-9366
- Dayton Parts: 452-9366L
- Continental-ContiTech: 64459
- Triangle Air Springs: 8488
- Continental-ContiTech: 9 10-12 A 488
- Holland: 90557160
- Holland: 90557210
- Holland: 90557225
- Continental-ContiTech: 91012A488
- Firestone: 9366
- Firestone: 99366
- Automann: AB1DK23H-8203
- Automann: AB1DK23H-9366
- Automann: AM9366
- Watson & Chalin: AS-0054
- Triangle Air Springs: AS-8488
- Euclid: E-FS9366
- Freightliner: FI W01 358 9366
- Goodyear: FIRW013589366
- Meritor: FS9366
- Freightliner: GYR 1R12 487
- Genuine Newstar: GYR-1R12-487
- Genuine Newstar: S-25910
- Genuine Newstar: S25910
- Torque: TR9366
- Firestone: W01-358-9366
- World American: WA01-9366
1R12-1047 Cross Reference
- Batco: 10-99366
- OE Aftermarket: 14849-HDV9366
- Goodyear: 1R12-487
- Dayton Parts: 352-9366
- Dayton Parts: 452-9366
- Dayton Parts: 452-9366L
- Continental-ContiTech: 64459
- Triangle Air Springs: 8488
- Continental-ContiTech: 9 10-12 A 488
- Holland: 90557160
- Holland: 90557210
- Holland: 90557225
- Continental-ContiTech: 91012A488
- Firestone: 9366
- Firestone: 99366
- Automann: AB1DK23H-8203
- Automann: AB1DK23H-9366
- Automann: AM9366
- Watson & Chalin: AS-0054
- Triangle Air Springs: AS-8488
- Euclid: E-FS9366
- Freightliner: FI W01 358 9366
- Goodyear: FIRW013589366
- Meritor: FS9366
- Freightliner: GYR 1R12 487
- Genuine Newstar: GYR-1R12-487
- Genuine Newstar: S-25910
- Genuine Newstar: S25910
- Torque: TR9366
- Firestone: W01-358-9366
- World American: WA01-9366
