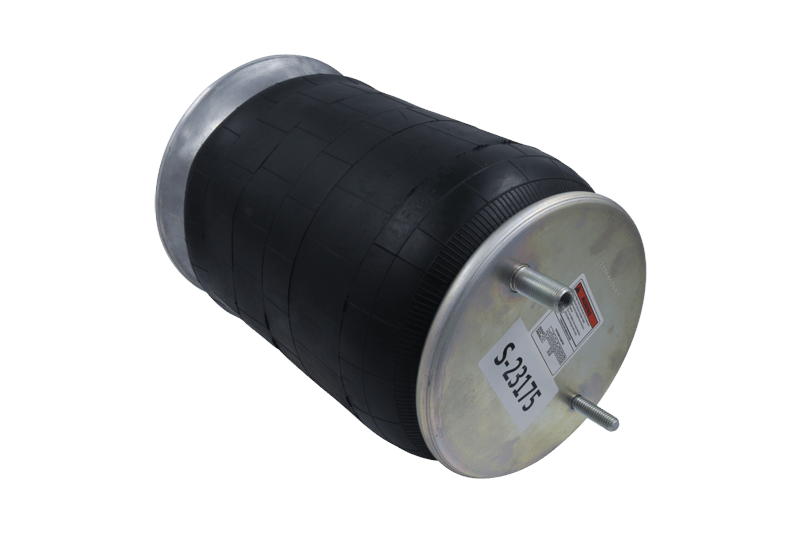

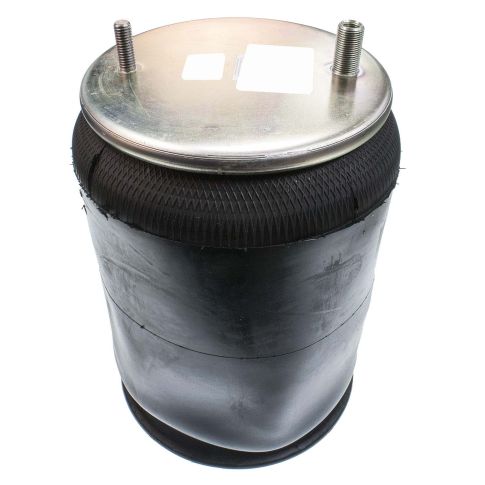

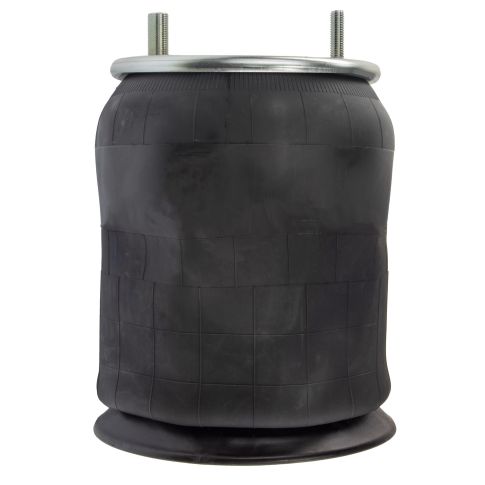

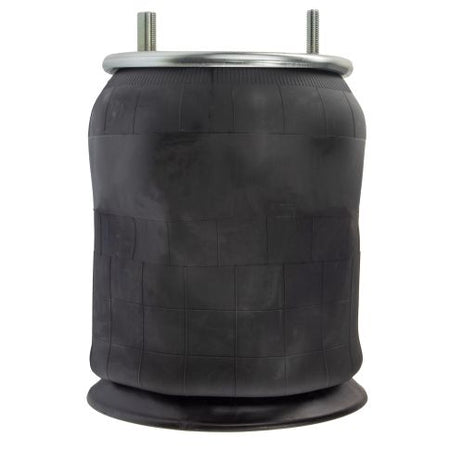

1R12-256 Air Spring - AFTERMARKET
Couldn't load pickup availability

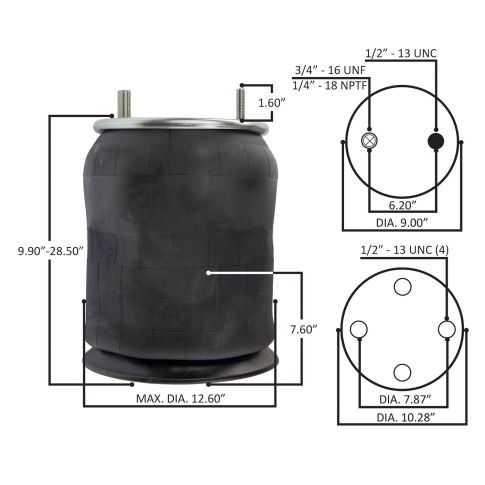

Cap Number: 3188Piston Number: 9653Top Plate Hole/Stud: 2 Bottom Plate Hole/Stud: 4 Extended Height: 27.60"Compressed Height: 9.20"Top Plate Diameter: 9.00"Bottom Plate Diameter: 10.25". CROSS REFERENCES: GYR 1R12 256, GBH1R12256, VTC-01852, W01-358-9367
AIR SPRING RL PB
Air Spring Type: Rolling Lobe
Base Plate Material: Aluminum
Bottom Plate Alignment: Parallel
Bottom Plate Bolt Hole Quantity: 4
Bottom Plate Center to Center: 2.25 Inch
Bottom Plate Diameter: 10.31 Inch
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Design Height: 18 Inch
Load Rating at 100 PSI: 7000 Pound
Load Rating at 80 PSI: 5500 Pound
Maximum Diameter: 10.12 Inch
Maximum Height: 27.6 Inch
Minimum Height: 9.2 Inch
Natural Frequency: 55 Hertz
Taxonomy A: Air Springs/Bags
Taxonomy B: Trailer
Taxonomy C: Rolling Lobe
Top Plate Bolt Hole Quantity: 2
Top Plate Center to Center: 6.2 Inch
Top Plate Diameter: 9 Inch
Warranty Period: 1 Year or 100,000 Miles
Replaces:
- Hendrickson: 003319
- Batco: 10-99321
- Stoughton Trailers: 1001R12256G
- Ridewell Corp: 1003589321C
- World American: 1R12-256
- Goodyear: 1R12-3335
- Goodyear: 1R12-335
- Rockwell International: 201335
- Hendrickson: 3319
- Dayton Parts: 352-9321
- Dayton Parts: 352-9367
- Triangle Air Springs: 4400
- Dayton Parts: 452-9367
- Automann: 566.ER9321
- Holland: 57009321
- Continental-ContiTech: 64715
- Triangle Air Springs: 8505
- Continental-ContiTech: 9 10-21 A 361
- Continental-ContiTech: 91021A361
- Firestone: 9321
- Firestone: 9367
- Automann: AB1DK23N-9321
- Automann: AB1DK23N-9321A
- Automann: AB1DK23N-9367
- Automann: AB1DK23N9367
- Automann: AMAB1DK23N9367
- Watson & Chalin: AS-0036
- Watson & Chalin: AS-0104
- Triangle Air Springs: AS-4400
- Triangle Air Springs: AS-9367
- Goodyear: AS93670
- Hendrickson: B14249
- Euclid: E-FS9321
- Rockwell International: E-FS9367
- Freightliner: FI W01 358 9367
- Meritor: FS9321
- Rockwell International: FS9367
- Freightliner: GBH1R12256
- Freightliner: GYR 1R12 256
- Genuine Newstar: GYR-1R12-256
- BWP: M-3545
- Hendrickson: NS-501304
- Hendrickson: NS501304
- Meritor: RFS9321
- Hendrickson: RR003319
- Hendrickson: S-14249
- Genuine Newstar: S-23175
- Hendrickson: S14249
- Genuine Newstar: S23175
- Leland Brake & Wheel Parts: SC2120
- Goodyear: STM1R12256
- Goodyear: TDAFS9367
- Torque: TR9321
- Firestone: W01-358-9321
- Firestone: W01-358-9367
- World American: WA01-9321
1R12-256 Cross Reference
- Batco: 10-99321
- Stoughton Trailers: 1001R12256G
- Ridewell Corp: 1003589321C
- World American: 1R12-256
- Goodyear: 1R12-3335
- Goodyear: 1R12-335
- Rockwell International: 201335
- Hendrickson: 3319
- Dayton Parts: 352-9321
- Dayton Parts: 352-9367
- Triangle Air Springs: 4400
- Dayton Parts: 452-9367
- Automann: 566.ER9321
- Holland: 57009321
- Continental-ContiTech: 64715
- Triangle Air Springs: 8505
- Continental-ContiTech: 9 10-21 A 361
- Continental-ContiTech: 91021A361
- Firestone: 9321
- Firestone: 9367
- Automann: AB1DK23N-9321
- Automann: AB1DK23N-9321A
- Automann: AB1DK23N-9367
- Automann: AB1DK23N9367
- Automann: AMAB1DK23N9367
- Watson & Chalin: AS-0036
- Watson & Chalin: AS-0104
- Triangle Air Springs: AS-4400
- Triangle Air Springs: AS-9367
- Goodyear: AS93670
- Hendrickson: B14249
- Euclid: E-FS9321
- Rockwell International: E-FS9367
- Freightliner: FI W01 358 9367
- Meritor: FS9321
- Rockwell International: FS9367
- Freightliner: GBH1R12256
- Freightliner: GYR 1R12 256
- Genuine Newstar: GYR-1R12-256
- BWP: M-3545
- Hendrickson: NS-501304
- Hendrickson: NS501304
- Meritor: RFS9321
- Hendrickson: RR003319
- Hendrickson: S-14249
- Genuine Newstar: S-23175
- Hendrickson: S14249
- Genuine Newstar: S23175
- Leland Brake & Wheel Parts: SC2120
- Goodyear: STM1R12256
- Goodyear: TDAFS9367
- Torque: TR9321
- Firestone: W01-358-9321
- Firestone: W01-358-9367
- World American: WA01-9321
