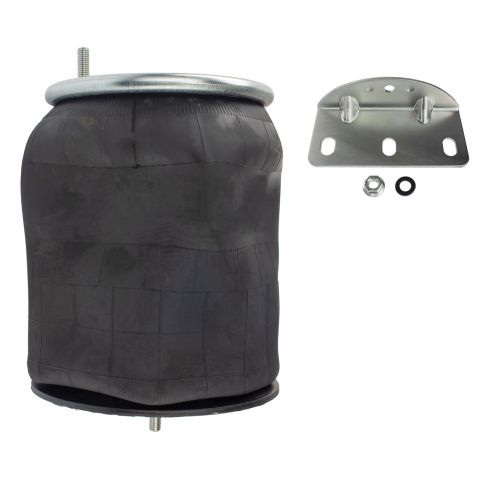

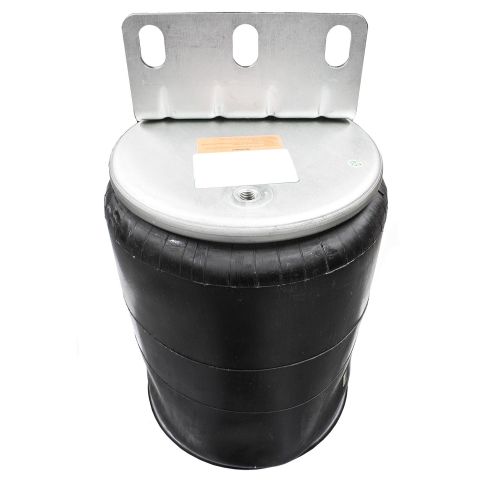

1R12-404 Air Spring - AFTERMARKET
Couldn't load pickup availability

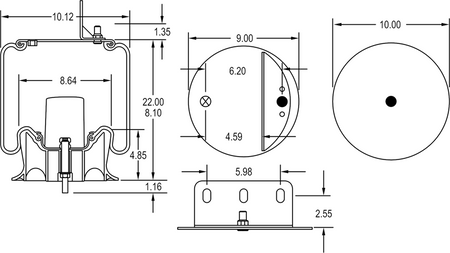

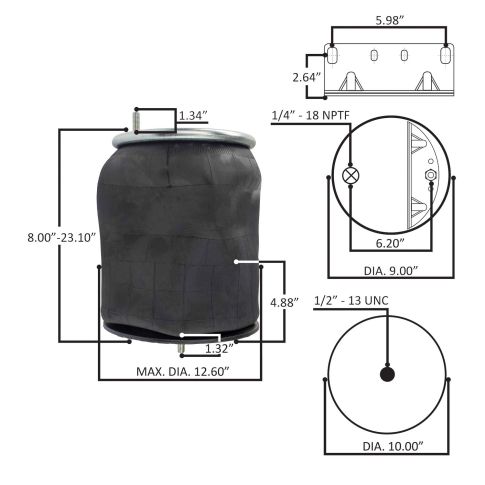

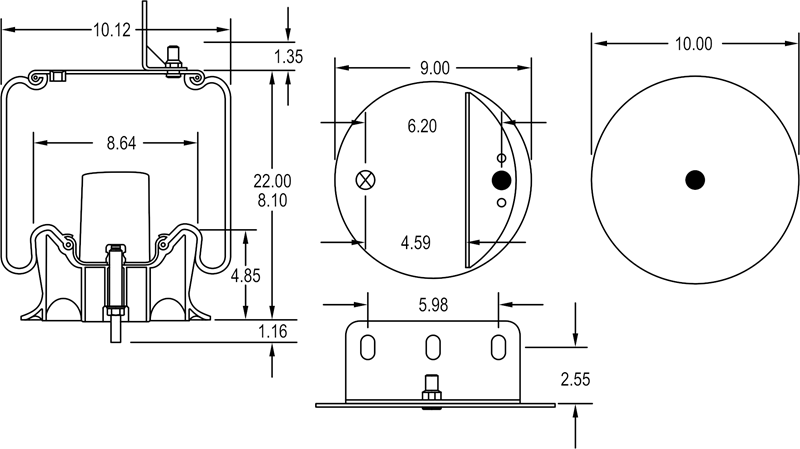

Extended Height: 20.00"Collapsed Height: 8.10"Bracket Added & Plastic base. CROSS REFERENCES: GYR 1R12 404, VTTAS8644
AIR SPRING RL PB
Air Spring Type: Rolling Lobe
Base Plate Material: Aluminum
Bottom Plate Alignment: Parallel
Bottom Plate Bolt Hole Quantity: 1
Bottom Plate Center to Center: 2.25 Inch
Bottom Plate Diameter: 10 Inch
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Design Height: 12 Inch
Load Rating at 100 PSI: 7500 Pound
Load Rating at 80 PSI: 5900 Pound
Maximum Diameter: 10.12
Maximum Height: 22 Inch
Minimum Height: 8.1 Inch
Natural Frequency: 60 Hertz
Taxonomy A: Air Springs/Bags
Taxonomy B: Tractor
Taxonomy C: Rolling Lobe
Top Plate Bolt Hole Quantity: 2
Top Plate Center to Center: 6.2 Inch
Top Plate Diameter: 9 Inch
Warranty Period: 1 Year or 100,000 Miles
Replaces:
- Hendrickson: 050899-002
- Hendrickson: 050899-002L
- Batco: 10-99375
- Goodyear: 1S12-031
- Volvo Truck: 25158024
- Dayton Parts: 352-9375
- Mack: 3645Q27
- Mack: 364QS27
- Dayton Parts: 452-9375
- Hendrickson: 50899-002
- Hendrickson: 50899-002L
- Hendrickson: 50899-1
- Hendrickson: 50899-2
- Hendrickson: 508991
- Automann: 566.ER9375
- Mack: 57-QL-414-M
- Mack: 57QL414M
- Triangle Air Springs: 8451
- Continental-ContiTech: 9 10-17.5 P 440
- Continental-ContiTech: 910175P451
- Firestone: 9375
- Automann: AB1DK23M-9375
- Triangle Air Springs: AS-8451
- Paccar Parts: AS93750
- Haldex: CS112404
- Euclid: E-FS9375
- Freightliner: FI W01 358 9375
- Meritor: FS9375
- Freightliner: GYR 1R12 404
- Genuine Newstar: GYR-1R12-404
- Freightliner: HDXW013589375
- Genuine Newstar: S-25053
- Genuine Newstar: S25053
- Goodyear: STM1R12404
- Torque: TR9375
- Firestone: W01-358-9375
- World American: WA01-9375
1R12-404 Cross Reference
- Hendrickson: 050899-002
- Hendrickson: 050899-002L
- Batco: 10-99375
- Goodyear: 1S12-031
- Volvo Truck: 25158024
- Dayton Parts: 352-9375
- Mack: 3645Q27
- Mack: 364QS27
- Dayton Parts: 452-9375
- Hendrickson: 50899-002
- Hendrickson: 50899-002L
- Hendrickson: 50899-1
- Hendrickson: 50899-2
- Hendrickson: 508991
- Automann: 566.ER9375
- Mack: 57-QL-414-M
- Mack: 57QL414M
- Triangle Air Springs: 8451
- Continental-ContiTech: 9 10-17.5 P 440
- Continental-ContiTech: 910175P451
- Firestone: 9375
- Automann: AB1DK23M-9375
- Triangle Air Springs: AS-8451
- Paccar Parts: AS93750
- Haldex: CS112404
- Euclid: E-FS9375
- Freightliner: FI W01 358 9375
- Meritor: FS9375
- Freightliner: GYR 1R12 404
- Genuine Newstar: GYR-1R12-404
- Freightliner: HDXW013589375
- Genuine Newstar: S-25053
- Genuine Newstar: S25053
- Goodyear: STM1R12404
- Torque: TR9375
- Firestone: W01-358-9375
- World American: WA01-9375
