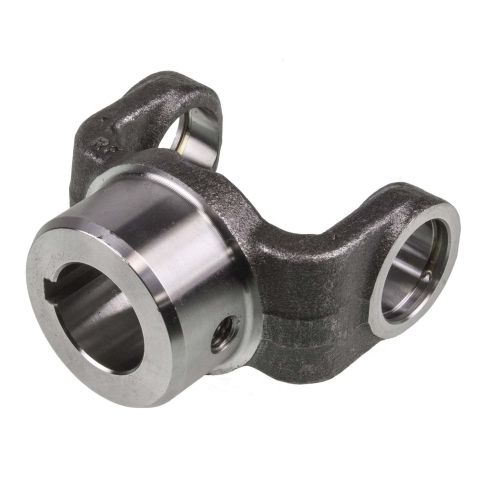

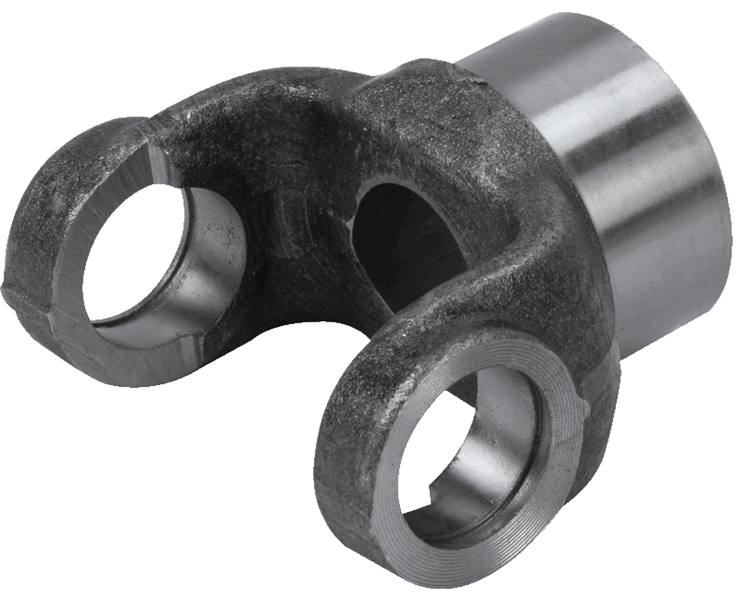

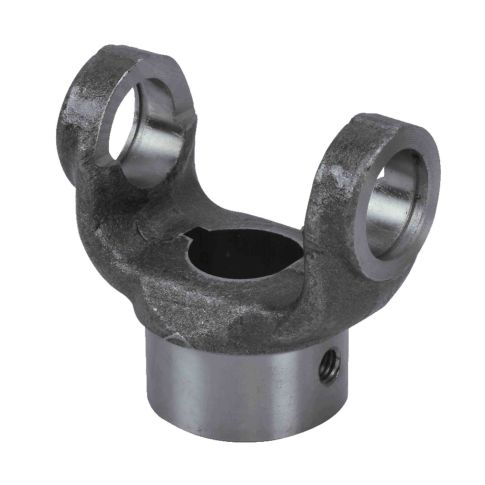

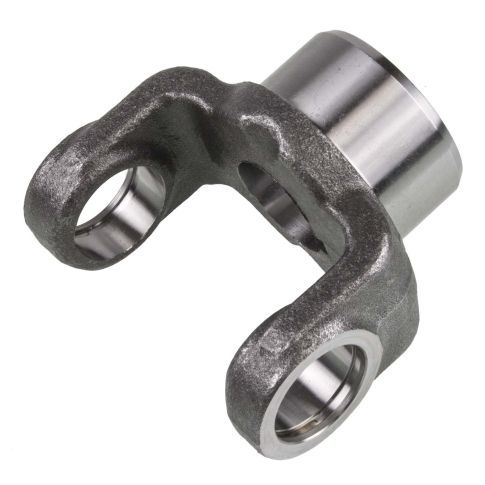

2-4-0503 PTO End Yoke - AFTERMARKET

In stock
SKU: 2-4-503R
Regular price $ 23.95

Round Hole Diameter: 1.125"SAE Keyway Width: 0.250"Hole Diamter: 0.375"Location Of Keyway: 12Location Of Set Screw: 6Hub Diameter: 2.125"C/L To End Of Hub: 2.562"Style: SR. CROSS REFERENCES: SP 2-4-503, N2-4-503, VTC-3139

Brand: World American
DL-EY-1310-1.1250-ROUND
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Centerline to End: 2.562 Inch
Hole Diameter: 1.125 Inch
Hole Maximum Diameter: 1.1255 Inch
Involute Spline: No
Joint Angle: 17 Degrees
Keyway Width: .25 Inch
Material: Steel
Maximum Hub Diameter: 2.125 Inch
Minimum Hole Diameter: 1.1245 Inch
Outside Yoke Dimension: 3.469 Inch
Taxonomy A: Driveline
Taxonomy B: End Yokes/Pinion Yokes
Taxonomy C: 1310 Series
Type: Straight Round Hole
Universal Joint Series: 1310
Yoke Bearing Dimension: 1.062 Inch
Yoke Style: SR

Warranty Period: 1 Year or 100,000 Miles

Replaces:

  • Meritor: 131N-4-503
  • Meritor: 131N4-503
  • Spicer: 2-4-503
  • Automann: 753.24503
  • Neapco OE Series: N2-4-503
  • Genuine Newstar: S-9313
  • Genuine Newstar: S9313
  • Genuine Newstar: SD-2-4-503

2-4-0503 Cross Reference

  • Meritor: 131N-4-503
  • Meritor: 131N4-503
  • Spicer: 2-4-503
  • Automann: 753.24503
  • Neapco OE Series: N2-4-503
  • Genuine Newstar: S-9313
  • Genuine Newstar: S9313
  • Genuine Newstar: SD-2-4-503
