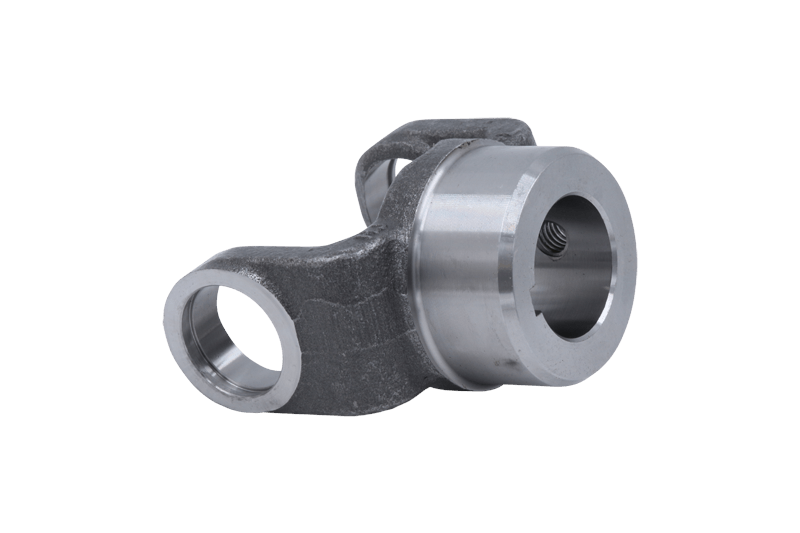

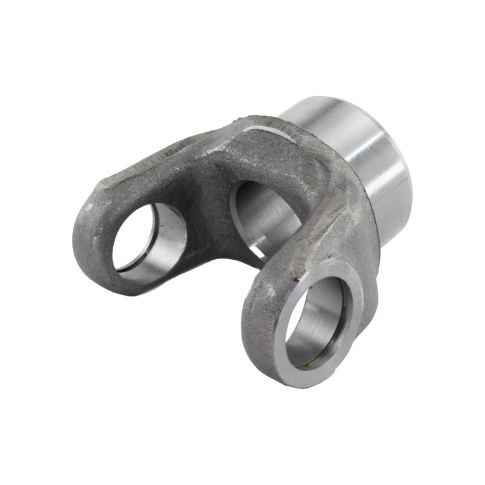

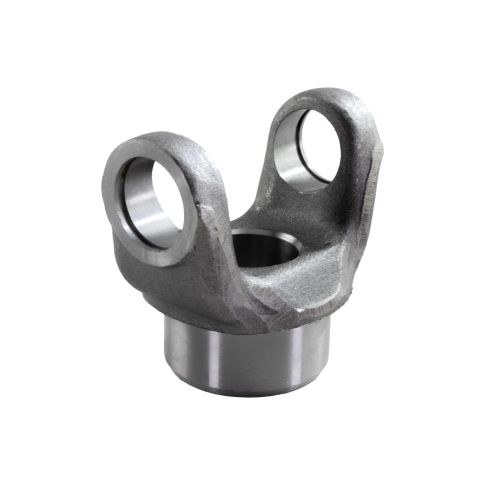

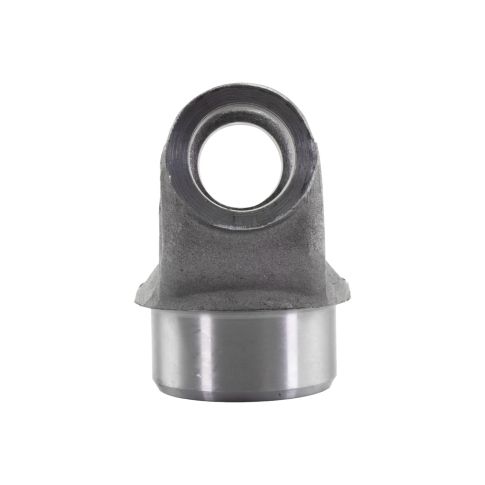

2-4-0573 PTO End Yoke - AFTERMARKET
Couldn't load pickup availability
Round Hole Diameter: 1.250"SAE Keyway Width: 0.250"Hole Diamter: 0.375"Location Of Keyway: 12Location Of Set Screw: 6Hub Diameter: 2.125"C/L To End Of Hub: 2.562"Style: SR. CROSS REFERENCES: N2-4-573, VTC-75991
DL-EY-SR-1310-1.2500
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Centerline to End: 2.562 Inch
Hole Diameter: 1.25 Inch
Hole Maximum Diameter: 1.2505 Inch
Involute Spline: No
Joint Angle: 17 Degrees
Keyway Width: .253 Inch
Material: Steel
Maximum Hub Diameter: 2.125 Inch
Minimum Hole Diameter: 1.2495 Inch
Outside Yoke Dimension: 3.469 Inch
SAE Keyway Width: .25 Inch
Set Screw Hole Diameter: .375 Inch
Taxonomy A: Driveline
Taxonomy B: End Yokes/Pinion Yokes
Taxonomy C: 1310 Series
Type: Straight Round Hole
Universal Joint Series: 1310
Yoke Bearing Dimension: 1.062 Inch
Yoke Style: SR
Warranty Period: 1 Year or 100,000 Miles
Replaces:
- Rockwell International: 131N-4-573
- Spicer: 2-4-573
- Neapco OE Series: N2-4-573
- Genuine Newstar: S-17599
- Genuine Newstar: S17599
- Genuine Newstar: SD-2-4-573
2-4-0573 Cross Reference
- Rockwell International: 131N-4-573
- Spicer: 2-4-573
- Neapco OE Series: N2-4-573
- Genuine Newstar: S-17599
- Genuine Newstar: S17599
- Genuine Newstar: SD-2-4-573
