Home » 2-4-783 PTO End Yoke - AFTERMARKET
2-4-783-ns
2-4-783-ns

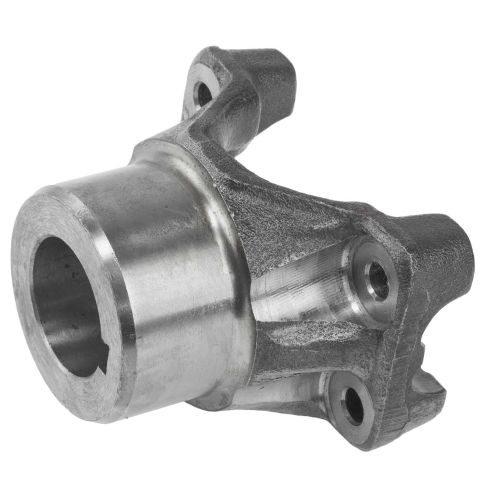

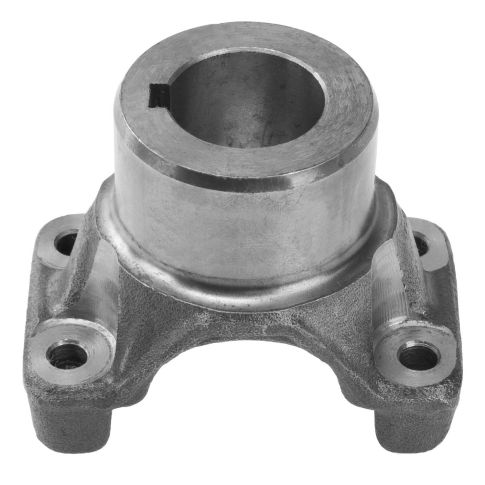

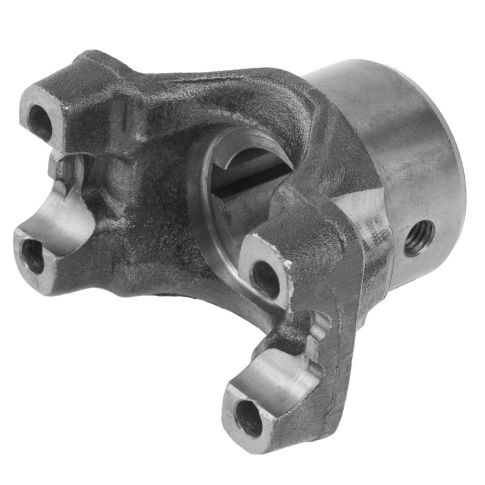

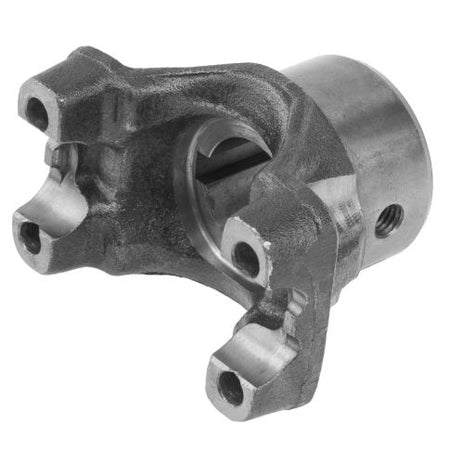

2-4-783 PTO End Yoke - AFTERMARKET

In stock
SKU: 2-4-783R
$ 61.30

Round Hole Diameter: 1.250"SAE Keyway Width: 0.313"Hole Diamter: 0.375"Location Of Keyway: 12Location Of Set Screw: 6Hub Diameter: 2.120"C/L To End Of Hub: 2.940"Style: UB. CROSS REFERENCES: SP 2-4-783, N2-4-783, VTC-606B

Brand: World American
END YOKE
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Centerline to End: 2.94 Inch
Hole Diameter: 1.25 Inch
Hole Maximum Diameter: 1.2505 Inch
Involute Spline: No
Joint Angle: 22 Degrees
Keyway Width: .313 Inch
Length Thru Hole: 1.495 Inch
Material: Steel
Maximum Hub Diameter: 2.125 Inch
Minimum Hole Diameter: 1.2495 Inch
Outside Yoke Dimension: 3.219 Inch
SAE Keyway Width: .314 Inch
Set Screw Hole Diameter: .375 Inch
Taxonomy A: Driveline
Taxonomy B: End Yokes/Pinion Yokes
Taxonomy C: 1310 Series
Type: Straight Round Hole
Universal Joint Series: 1310
Yoke Bearing Dimension: 1.062 Inch
Yoke Style: BS

Warranty Period: 1 Year or 100,000 Miles

Replaces:

  • Meritor: 131N-4-783
  • Meritor: 131N4-783
  • Meritor: 131N4783
  • Navistar: 1662830C
  • Navistar: 1662830C1
  • Spicer: 2-4-783
  • Spicer: 2-4-783-1
  • Volvo Truck: 3131350
  • Neapco OE Series: N2-4-783
  • Spicer: N2-4-783-1
  • Automann: NEPN2-4-783

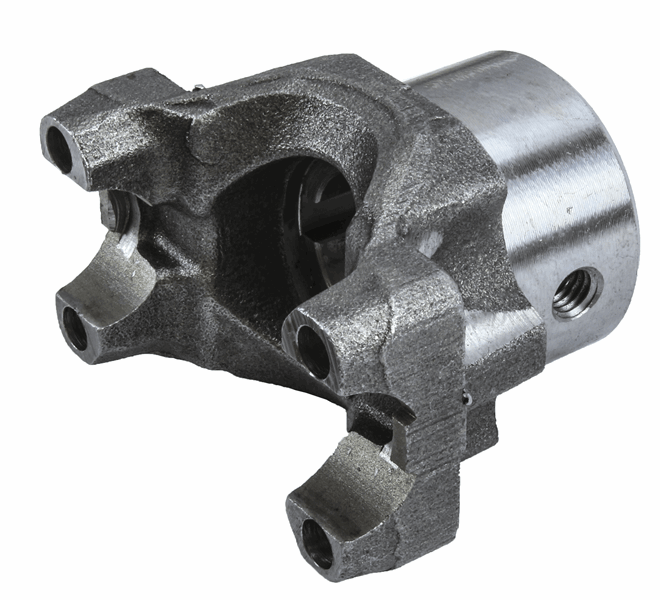

  • Genuine Newstar: S-B606
  • Genuine Newstar: SB606
  • Genuine Newstar: SD-2-4-783

2-4-783 Cross Reference

  • Meritor: 131N-4-783
  • Meritor: 131N4-783
  • Meritor: 131N4783
  • Navistar: 1662830C
  • Navistar: 1662830C1
  • Spicer: 2-4-783
  • Spicer: 2-4-783-1
  • Volvo Truck: 3131350
  • Neapco OE Series: N2-4-783
  • Spicer: N2-4-783-1
  • Automann: NEPN2-4-783
  • Genuine Newstar: S-B606
  • Genuine Newstar: SB606
  • Genuine Newstar: SD-2-4-783
