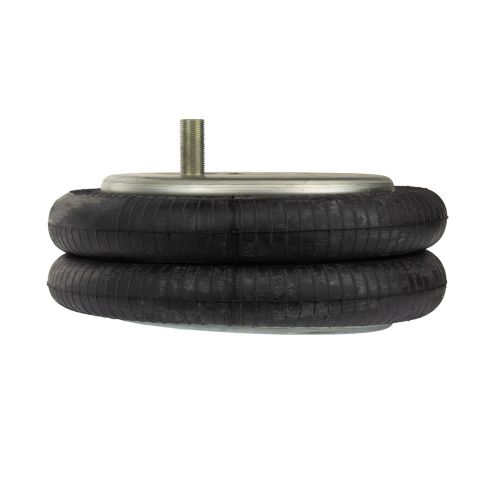

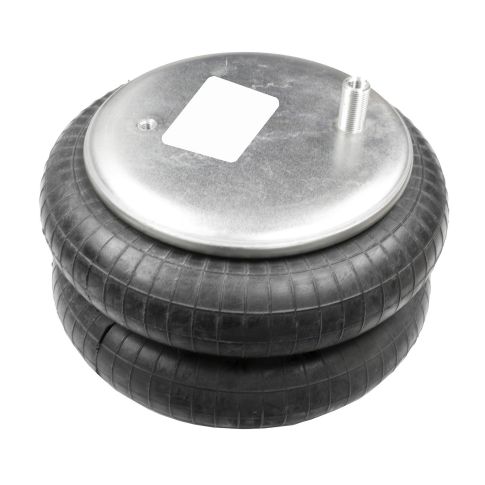

2B12-307 Air Spring - AFTERMARKET
Couldn't load pickup availability

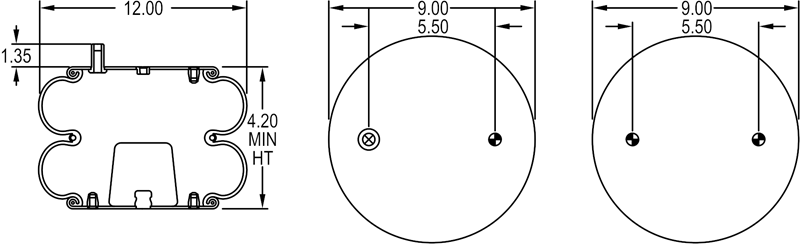

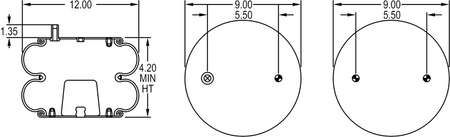

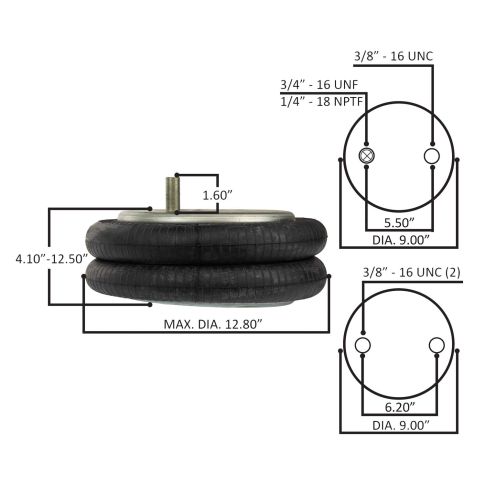

Extended Length: 10.9"Compressed Length: 3.8". CROSS REFERENCES: VTTAS7403, TR7403
AIR SPRING DC SB
Air Spring Type: Double Convoluted
Base Plate Material: Aluminum
Bottom Plate Alignment: Parallel
Bottom Plate Bolt Hole Quantity: 2
Bottom Plate Center to Center: 2.25 Inch
Bottom Plate Diameter: 9. Inch
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Design Height: 9.5 Inch
Load Rating at 100 PSI: 5250 Pound
Load Rating at 80 PSI: 4200 Pound
Maximum Diameter: 12 Inch
Maximum Height: 12 Inch
Minimum Height: 4.2 Inch
Natural Frequency: 102 Hertz
Taxonomy A: Air Springs/Bags
Taxonomy B: Trailer
Taxonomy C: Double Convoluted
Top Plate Bolt Hole Quantity: 2
Top Plate Center to Center: 5.5 Inch
Top Plate Diameter: 9 Inch
Warranty Period: 1 Year or 100,000 Miles
Replaces:
- Batco: 10-97403
- Ridewell Corp: 1003587403C
- Meritor: 200448
- Reyco Granning: 2725
- Goodyear: 2B12-307
- Volvo Truck: 352035001
- Dayton Parts: 354-7403
- Triangle Air Springs: 4318
- Navistar: 554787C
- Navistar: 554787C1
- Holland: 57007403
- Triangle Air Springs: 6316
- Continental-ContiTech: 64488
- Firestone: 7403
- Automann: ABSP2B22R-7403
- Watson & Chalin: AS-0007
- Triangle Air Springs: AS-4318
- Triangle Air Springs: AS-7403
- Paccar Parts: AS74030
- Binkley: B-12514-001
- Hendrickson: B1159
- Hendrickson: B12514001
- Hendrickson: B2883
- Haldex: CS212307
- Euclid: E-FS7403
- Continental-ContiTech: FD 330-22 318
- Continental-ContiTech: FD33022318
- Meritor: FS7403
- Genuine Newstar: GYR-2B12-307
- BWP: M-3507
- Automann: PHI16-7403
- Meritor: RFS7403
- Hendrickson: S-1159
- Genuine Newstar: S-25911
- Hendrickson: S-2883
- Genuine Newstar: S25911
- Hendrickson: S2883
- Leland Brake & Wheel Parts: SC2021
- Torque: TR7403
- Firestone: W01-358-7403
2B12-307 Cross Reference
- Hendrickson: S2883
- Leland Brake & Wheel Parts: SC2021
- Torque: TR7403
- Firestone: W01-358-7403
- Reyco Granning: 2725
- Goodyear: 2B12-307
- Volvo Truck: 352035001
- Dayton Parts: 354-7403
- Triangle Air Springs: 4318
- Navistar: 554787C
- Navistar: 554787C1
- Holland: 57007403
- Triangle Air Springs: 6316
- Continental-ContiTech: 64488
- Firestone: 7403
- Automann: ABSP2B22R-7403
- Watson & Chalin: AS-0007
- Triangle Air Springs: AS-4318
- Triangle Air Springs: AS-7403
- Paccar Parts: AS74030
- Binkley: B-12514-001
- Hendrickson: B1159
- Hendrickson: B12514001
- Hendrickson: B2883
- Haldex: CS212307
- Euclid: E-FS7403
- Continental-ContiTech: FD 330-22 318
- Continental-ContiTech: FD33022318
- Meritor: FS7403
- Genuine Newstar: GYR-2B12-307
- BWP: M-3507
- Automann: PHI16-7403
- Meritor: RFS7403
- Hendrickson: S-1159
- Genuine Newstar: S-25911
- Hendrickson: S-2883
- Genuine Newstar: S25911
- Meritor: 200448
- Ridewell Corp: 1003587403C
- Batco: 10-97403
