Home » 34246 PTO End Yoke - AFTERMARKET
34246-ns
34246-ns

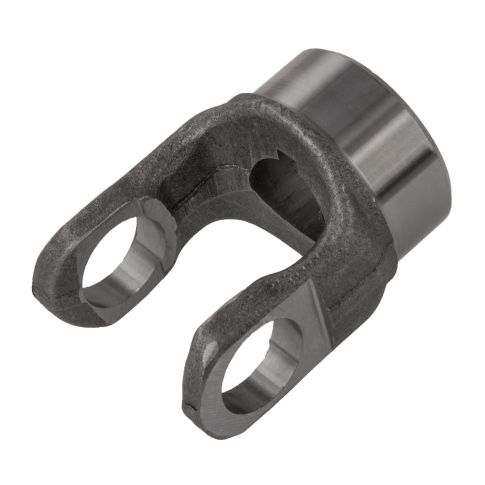

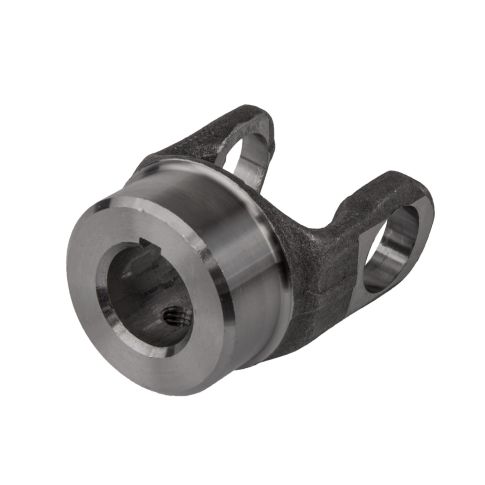

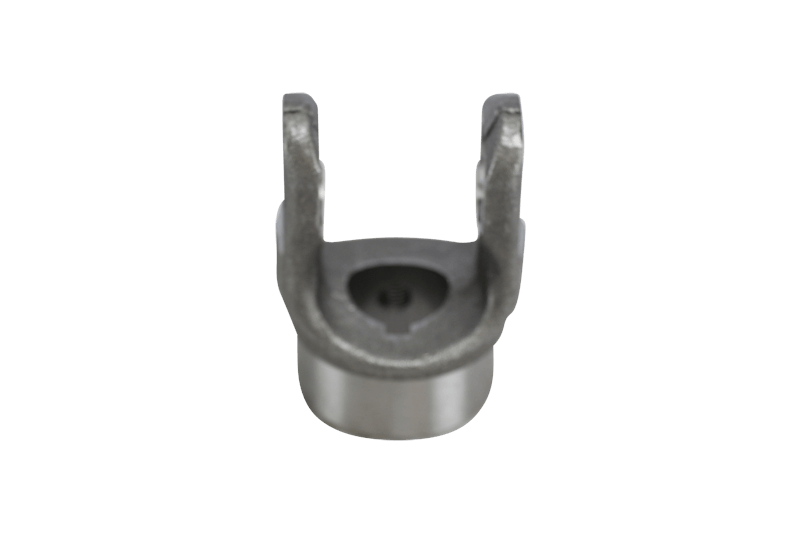

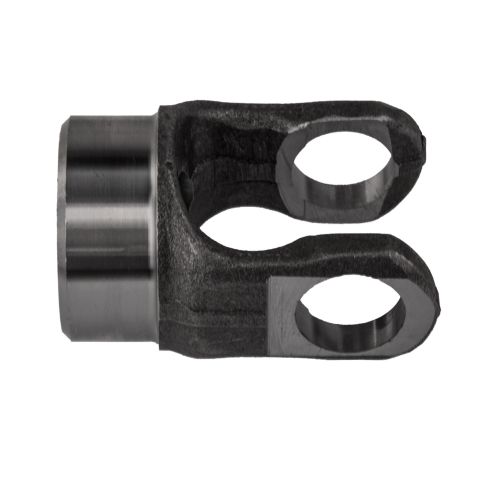

34246 PTO End Yoke - AFTERMARKET

In stock
SKU: 10-4-93R
$ 15.79

Round Hole Diameter: 1.000"SAE Keyway Width: 0.250"Hole Diamter: 0.375"Location Of Keyway: 3Location Of Set Screw: 9 Hub Diameter: 2.000"Length Thru Hole: 1.030"C/L To End Of Hub: 2.500"Style: ISR. CROSS REFERENCES: SP 10-4-93, 10-0493, 05115, 10-4-93R, 1521

Brand: World American
DL-EY-1000-1.0000-ISR
Bore Diameter: 1 Inch
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Centerline to End: 2.5 Inch
Joint Angle: 60 Degrees
Keyway Width: .25 Inch
Length Thru Hole: 1.03 Inch
Material: Steel
Maximum Hub Diameter: 1.625 Inch
SAE Keyway Width: .25 Inch
Taxonomy A: Driveline
Taxonomy B: End Yokes/Pinion Yokes
Taxonomy C: 1000 Series
Type: Straight Round Hole
Yoke Bearing Dimension: .938 Inch
Yoke Style: ISR

Warranty Period: 1 Year or 100,000 Miles

Replaces:

  • OE Aftermarket: PT10-4-93
  • OE Aftermarket: 05115
  • Neapco OE Series: 10-0493
  • Spicer: 10-4-93
  • Meritor: 10N-4-93
  • Meritor: 10N4-93
  • OE Aftermarket: 1521
  • OE Aftermarket: 1522
  • Spicer: 34246
  • Spicer: 51-15
  • OE Aftermarket: 7493
  • PERMCO: DM10-4-93
  • Muncie: EY140
  • Genuine Newstar: S-8630
  • Genuine Newstar: S8630
  • Genuine Newstar: SD-10-4-93

34246 Cross Reference

  • Neapco OE Series: 10-0493
  • Meritor: 10N-4-93
  • Meritor: 10N4-93
  • MOOG Driveline Products: 1521
  • MOOG Driveline Products: 1522
  • Spicer: 34246
  • Spicer: 51-15
  • Neapco OE Series: 5115
  • OE Aftermarket: 7493
  • PERMCO: DM10-4-93
  • Muncie: EY140
  • Genuine Newstar: S-8630
  • Genuine Newstar: S8630
  • Genuine Newstar: SD-10-4-93
