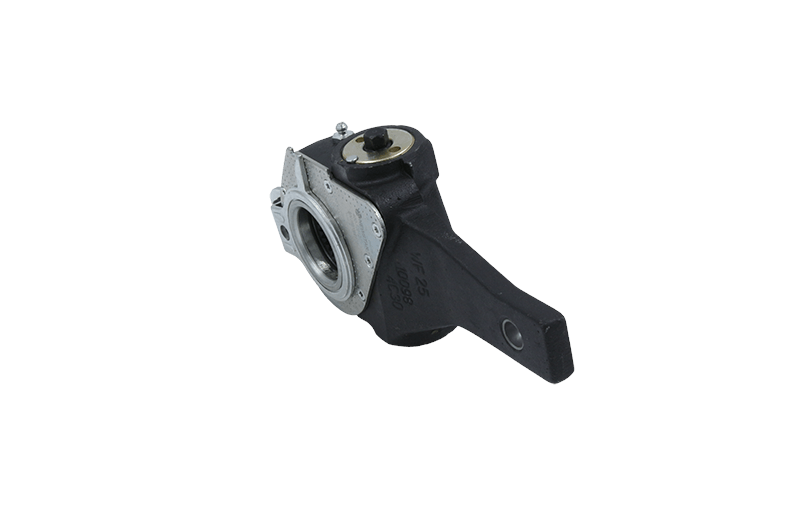

400-10212 Slack Adjuster, Automatic, 6", Haldex Style - AFTERMARKET
Couldn't load pickup availability
40010212 Truck Part Specifications
Auto Brake Adjusters, Trailer Axle App., 16.5" Brake Assy Arm Length 6" Offset 0
Application Summary
Trailer Axle Applications, ABA Service Kit for 16.5 Brake Assembly, Trailer Axle Application

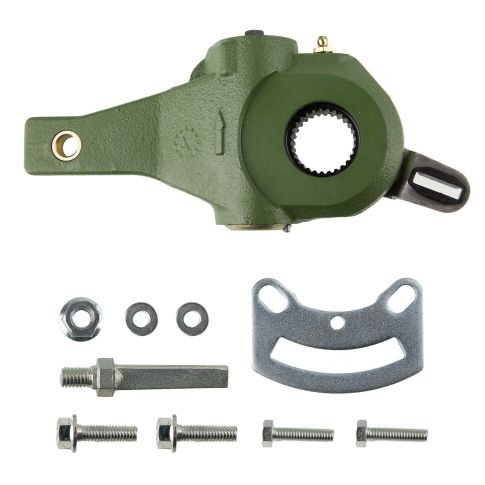

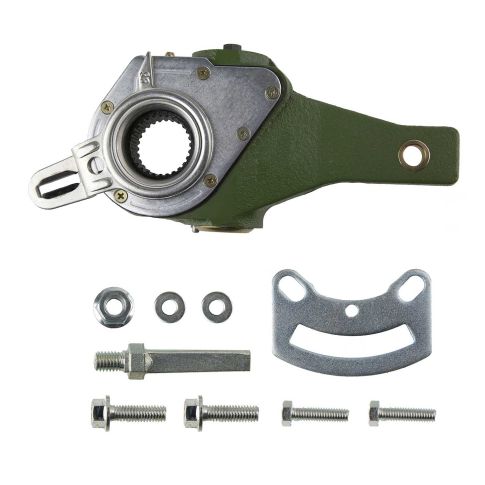

Haldex Automatic Brake Adjuster (ABA) Service Kit
Improve your ride’s stopping performance with the Haldex automatic brake adjuster (ABA) service kit. This kit already includes the air brake automatic slack adjuster and other components you need to service your truck’s air braking system.
Product Attributes
Anchor Bracket Style |
Plate and Flat Stud |
Arm Hole Diameter |
0.5 in. |

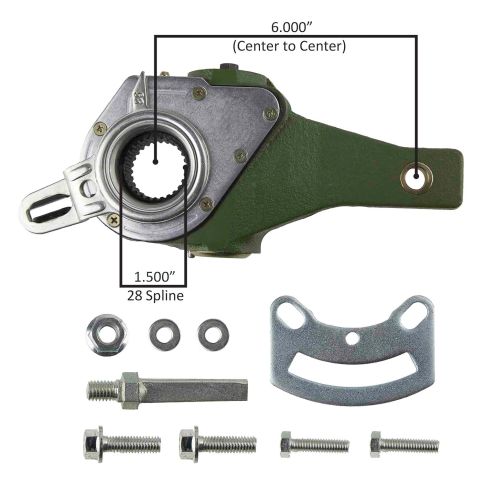

Arm Length |
6 in. |
Body Angle |
0° |
Bracket Number |
42710563 |
Freight Class |
70 |
Grease Fitting Location |
180° |
Grease Fitting Type |
Straight |
Location |
Rear |
Offset |
0 in. |
Pin Diameter |
0.5 in. |
Spline Diameter |
1.5 in. |
Spline Quantity |
28 |
What Is The 40010212 Truck Part Used For?
The 40010212 Slack Adjuster is designed for automatic adjustment of a truck or trailer’s braking system, ensuring proper brake tension for optimal safety and performance. This part is particularly used in trailer axles and helps maintain the correct clearance between the brake drum and the brake lining, preventing over-adjustment and wear.
40010212 Slack Adjuster Features and Benefits
The 40010212 Slack Adjuster provides durability, efficiency, and precision for truck and trailer braking systems. It is built for long-lasting performance in demanding conditions.
- Unhanded design: Can be used on either side of the vehicle, offering greater flexibility.
- Drilled worm wheel: Provides smooth and reliable operation.
- Factory lubricated and sealed: Ensures low maintenance and long-lasting performance.
- Heavy-duty internal components: Made to withstand extreme pressure and use.
- Long-stroke compatible: Works efficiently with long-stroke brake chambers.
- High-quality materials: Manufactured from ductile nodular iron for added strength.
40010212 Cross Reference
- ABP N42AS 40010212
- HDX 40010212
- FC10212
- FLT40010212
- VTC-38552
- A86013
Haldex Truck Part Replacements
Haldex is a trusted name in the commercial truck parts industry, known for producing high-performance and durable parts. Their Haldex 40010212 slack adjusters are designed to ensure your truck’s braking system operates efficiently and safely. Built to rigorous standards, Haldex parts offer reliable, long-term solutions for fleets and individual truck operators.
