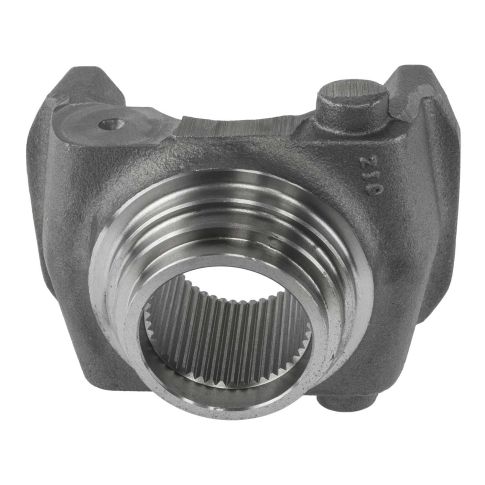

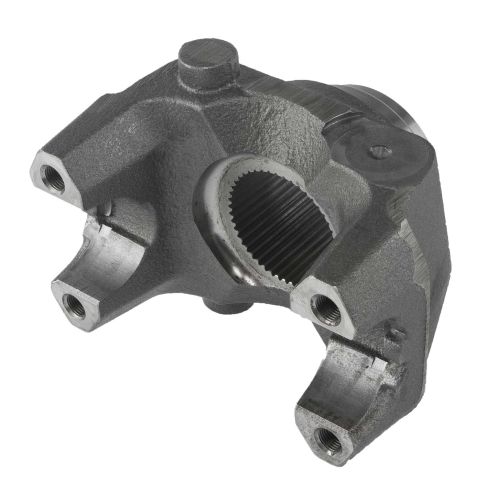

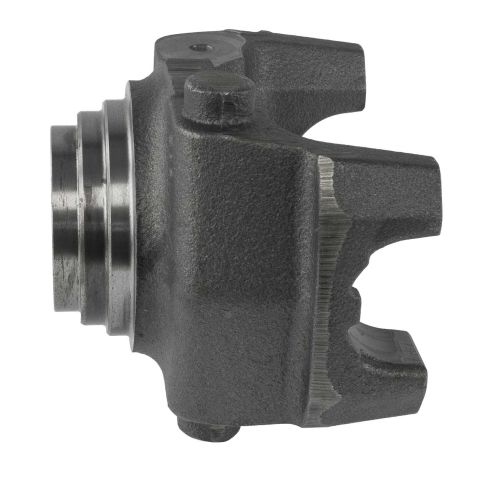

6-4-7481-1 Half Round End Yoke - AFTERMARKET

In stock
SKU: 6-4-7481-1R
$ 130.08

Spline Size: 2.390" - 46Major Diameter: 2.390"Ground Hub Diameter: 2.875" Length Thru Hole: 2.750"Centerline To End: 4.938"C'Bore Depth: 0.500"Style: HRCoupling Shaft. CROSS REFERENCES: SP 6-4-7481-1, VTC-314F

Brand: World American
DL-EY-1710-46INVSPLINE-2.3900
Assembly: No
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Centerline to End: 4.938 Inch
Includes Slinger/Plug: No
Joint Angle: 20.5 Degrees
Length Thru Hole: 2.75 Inch
Material: Steel
Maximum Hub Diameter: 2.875 Inch
Outside Yoke Dimension: 6.19 Inch
Spline Quantity: 46
Taxonomy A: Driveline
Taxonomy B: End Yokes/Pinion Yokes
Taxonomy C: 1710 Series (Half Round)
Type: Splined Hole
U Joint Cap Diameter: 2.39 Inch
Yoke Bearing Dimension: 1.938 Inch
Yoke Style: HR

Warranty Period: 1 Year or 100,000 Miles

Replaces:

  • Navistar: 1668-158-C
  • Mack: 2104-6474811
  • Spicer: 6-4-7481-1
  • Spicer: 6-4-7481-1N
  • Spicer: 6-4-7481-1X
  • Spicer: N6-4-7481-1
  • Automann: NEPN6-4-7481-1
  • Genuine Newstar: S-F314
  • Genuine Newstar: SD-6-4-7481-1
  • Genuine Newstar: SF314
  • Freightliner: SP6474811

6-4-7481-1 Cross Reference

  • Navistar: 1668-158-C
  • Mack: 2104-6474811
  • Spicer: 6-4-7481-1
  • Spicer: 6-4-7481-1N
  • Spicer: 6-4-7481-1X
  • Spicer: N6-4-7481-1
  • Automann: NEPN6-4-7481-1
  • Genuine Newstar: S-F314
  • Genuine Newstar: SD-6-4-7481-1
  • Genuine Newstar: SF314
  • Freightliner: SP6474811
