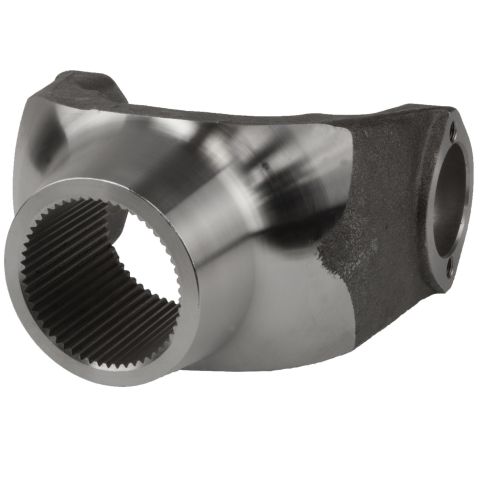

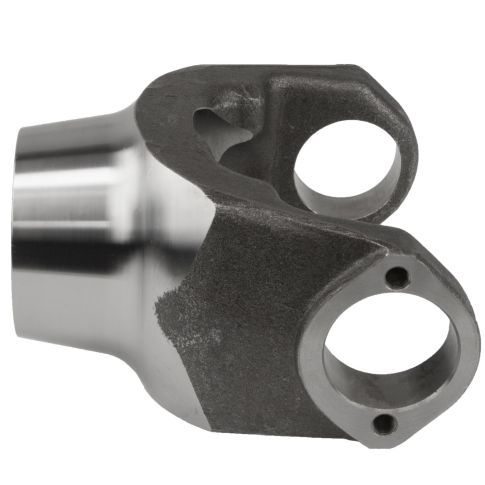

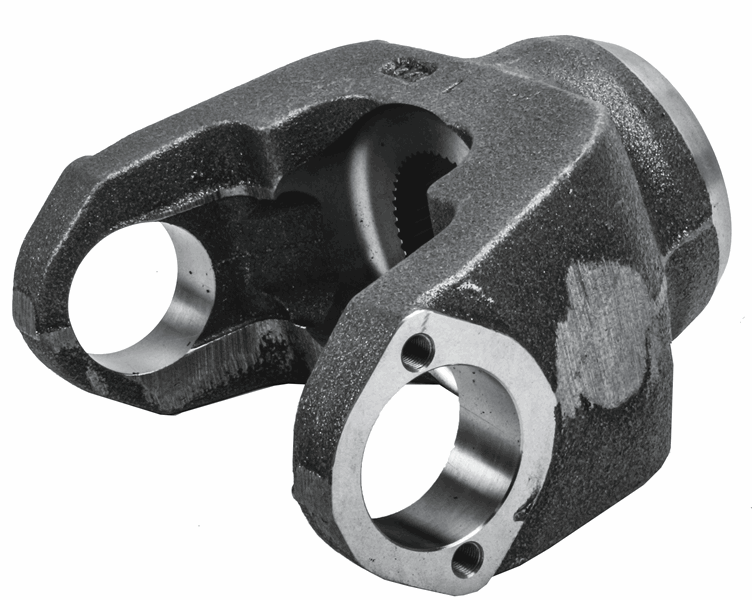

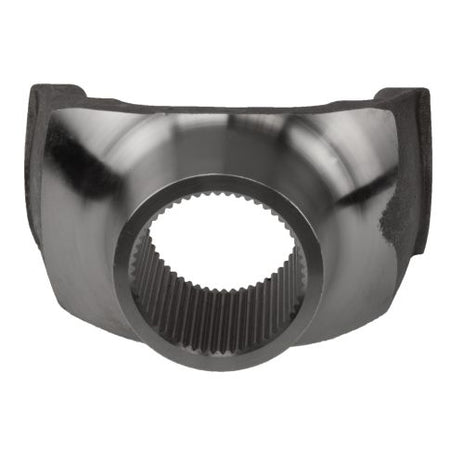

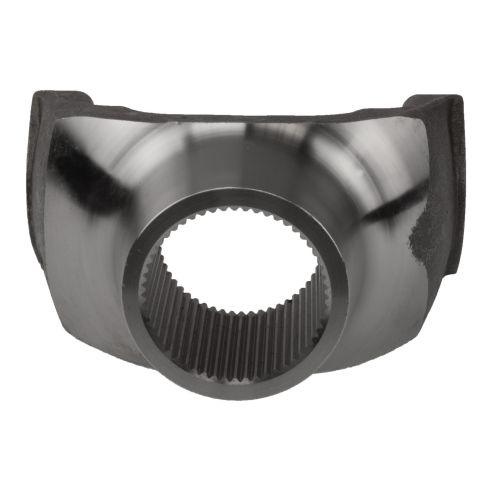

6.5-4-4631 End Yoke - AFTERMARKET
Couldn't load pickup availability
Spline Size: 2.794" - 54Major Diameter: 2.794" Length Thru Hole: 2.750"Centerline To End: 5.625"Style: BP. CROSS REFERENCES: SP 6.5-4-4631, 016.5-4-4631, VTC-631C
DL-EY-1810-54INVSPLINE-2.7940
Across Ears: 7.643 Inch
Assembly: No
Bearing Cap Diameter: 1.938 Inch
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Centerline to End: 5.625 Inch
Includes Slinger/Plug: No
Joint Angle: 30 Degrees
Length Thru Hole: 2.75 Inch
Material: Steel
Outside Yoke Dimension: 7.643 Inch
Spline Diameter: 2.794 Inch
Spline Length: 2.75 Inch
Spline Quantity: 54
Taxonomy A: Driveline
Taxonomy B: End Yokes/Pinion Yokes
Taxonomy C: 1810 Series (Full Round)
Type: Splined Hole
Universal Joint Series: 1810
Yoke Bearing Dimension: 1.938 Inch
Yoke Style: HR
Warranty Period: 1 Year or 100,000 Miles
Replaces:
- OE Aftermarket: 016.5-4-4631
- Mack: 181MU52P48
- Meritor: 18N-4-4631
- Meritor: 18NYS45
- Mack: 2104-6544631
- Navistar: 3534225C
- Navistar: 3534225C1
- Volvo Truck: 3971290
- Fuller- Transmissions: 5505548
- Spicer: 6.5-4-4631
- OE Aftermarket: 7000205
- PAI: 7009
- PAI: 70090
- Freightliner: FUL 5505548
- PAI: GTY-7009
- Neapco OE Series: N6.5-4-4631
- Genuine Newstar: S-C631
- Genuine Newstar: SC631
- Genuine Newstar: SD-6.5-4-4631
6.5-4-4631 Cross Reference
- Freightliner: 016.5-4-4631
- Mack: 181MU52P48
- Meritor: 18N-4-4631
- Meritor: 18NYS45
- Mack: 2104-6544631
- Navistar: 3534225C
- Navistar: 3534225C1
- Volvo Truck: 3971290
- Fuller- Transmissions: 5505548
- Spicer: 6.5-4-4631
- OE Aftermarket: 7000205
- PAI: 7009
- PAI: 70090
- Freightliner: FUL 5505548
- PAI: GTY-7009
- Neapco OE Series: N6.5-4-4631
- Genuine Newstar: S-C631
- Genuine Newstar: SC631
- Genuine Newstar: SD-6.5-4-4631
