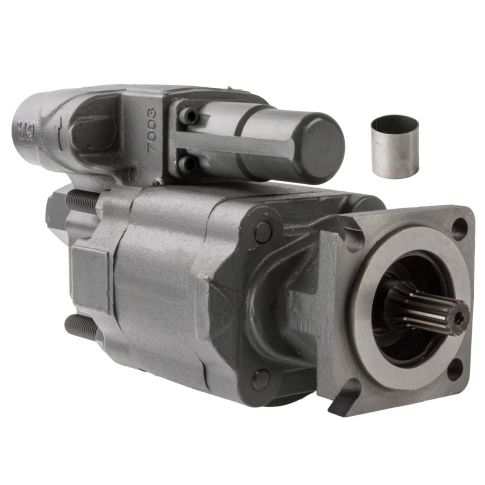

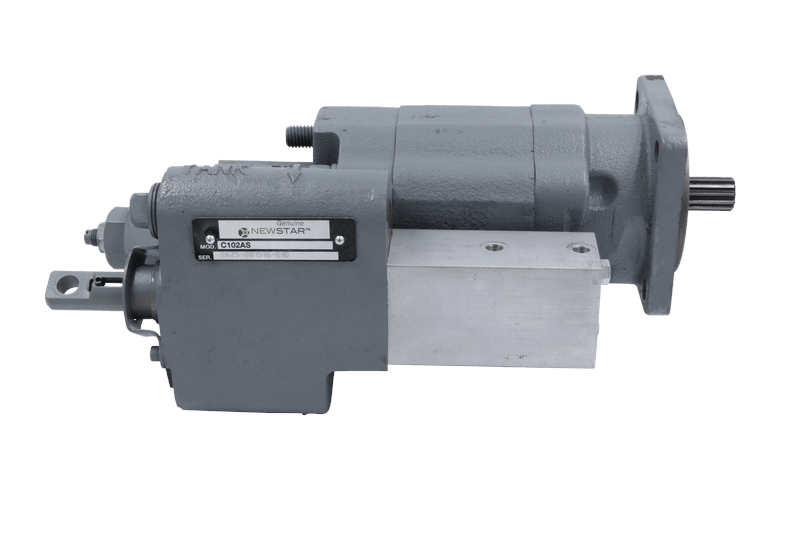

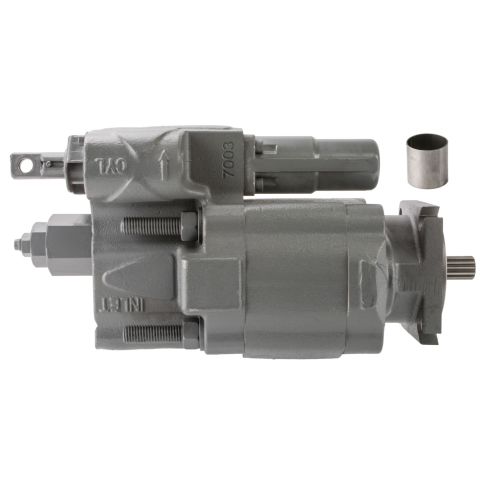

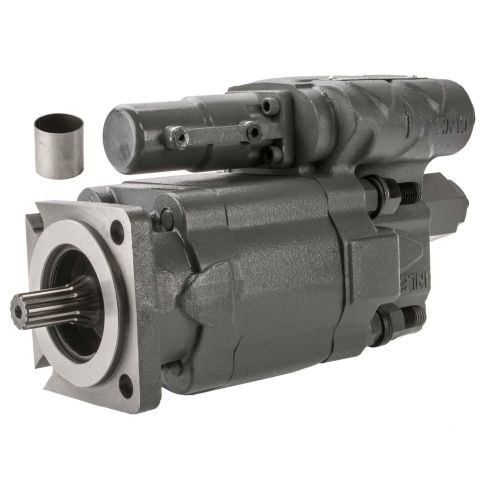

C102AS Dump Pump, C Series Direct Mount w/ Air Shift Cylinder - Newstar AFTERMARKET

C102AS Truck Part Specifications

C Series Direct Mount CCW Includes Air Shifter Cylinder 7/8 13 Tooth Spline Shaft 49 GPM Flow at 1800 RPM Max. RPM 2400 Extended Studs for Support Bracket Pre-Mounted Shifter Cylinder Sleeve Included

Design Attribute

2 Levels of Performance to Suit Your Needs

-Standard Pump Features

-Heavy duty roller bearings

-Pressure balanced thrust plates

-High pressure shaft seals

-Aluminum detent cover

-Factory set relief pressure

-2 or 3 line configuration

-Extended mounting studs

-Doweled construction for higher pressure

-Manual inspection of spool shaft and visual inspection of pump

-Batch tested to assure proper flow, pressure, relief valve operation and overall efficiency

Premium “T” Pump Features

Heavy duty roller bearings

Pressure balanced thrust plates

-High pressure shaft seals

-Aluminum detent cover

-Factory set relief pressure

-2 or 3 line configuration

-Extended mounting studs

-Doweled construction for higher pressure

-Manual inspection of spool shaft and visual inspection of pump

-Test is conducted at 1000 RPMS

-Oil temperature is maintained at 100 degrees Fahrenheit

-Relief valve at full flow to not exceed 2300 PSI

In Order to Pass The Quality Test, The Pump Must Perform to The Following Specifications:

-Minimum flow of 25 GPM at 1500 PSI

-Relief valve maximum pressure differential (crack to full flow) to not exceed 250 PSI

-Minimum overall volumetric efficiency at 92% or more

-A copy of the computer generated test results is included with each pump

What Is The C102AS Truck Part Used For?

The C102AS is a critical component in truck hydraulic systems, designed to power dump trucks efficiently. This hydraulic pump air shift cylinder ensures seamless operation by facilitating the transfer of hydraulic fluid, which is essential for lifting and lowering the dump body.

C102AS Features and Benefits

The C102AS Dump Pump offers reliability and superior performance for heavy-duty applications.

• Direct Mount: Ensures a secure and stable connection to the truck’s power take-off (PTO) system with 7/8 13 Tooth Spline Shaft.
• Air Shift Cylinder: Allows for smooth and efficient operation, making it easy to control the hydraulic functions. 49 GPM Flow at 1800 RPM, Max. RPM 2400 ensures optimal performance.
• Durable Construction: Built to withstand harsh conditions and heavy use, ensuring longevity and minimal maintenance. Features Extended Studs for Support Bracket and comes with a Pre-Mounted Shifter Cylinder.
• Efficient Hydraulic Performance: Provides optimal fluid flow and pressure, enhancing the overall efficiency of the truck’s hydraulic system.

C102AS Cross Reference

The C102AS can be cross-referenced with the following part numbers for compatibility and replacement purposes:

• C102AS
• C1010DMCCWAS
• BPC1010DMCCWAS
• RRC102AS
• COM C102AS
• EFC-C102AS
• C102ASRMC
• C102ASMAS
• E2XA12702BPRL
• E3XA12702-BPRL
• E2XA27-2BPRL
• E3XA27-2BPRL
• S-C678
• 314-9325-227


Newstar Truck Part Replacements

Newstar is renowned for providing high-quality aftermarket truck parts that meet or exceed OEM standards. Their range of replacements ensures that truck operators have access to reliable and durable components, such as the C102AS Dump Pump, to keep their vehicles in optimal working condition.

Incorporating essential features like the pto air shift cylinder, Newstar's products guarantee enhanced performance and operational efficiency for various hydraulic systems.

C102AS Truck Part Kits
