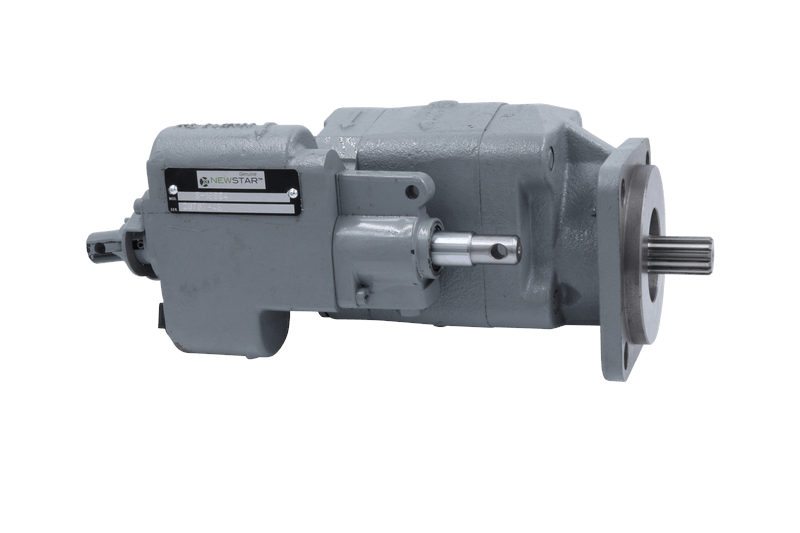

DMD-400-20-XR-200 Dump Pump, G Series Direct Mount - AFTERMARKET
Couldn't load pickup availability
Specifications
CW
3 Piece Cast Iron Design
High Pressure Shaft Seals
Factory Set 2000 PSI Relief w/ Load Check
Pressure Balanced Thrust Plates
Heavy Duty Roller Bearings
Two Or Three Line Hook Up
7/8 13 Tooth Spline Shaft
15 GPM at 1000 RPM to 37 GPM at 2400 RPM
Design Attribute
-Standard Pump Features
-Heavy duty roller bearings
-Pressure balanced thrust plates
-High pressure shaft seals
-Aluminum detent cover
-Factory set relief pressure
-2 or 3 line configuration
-Extended mounting studs
-Doweled construction for higher pressure
-Manual inspection of spool shaft and visual inspection of pump
-Batch tested to assure proper flow, pressure, relief valve operation and overall efficiency
Premium “T” Pump Features
Heavy duty roller bearings
Pressure balanced thrust plates
-High pressure shaft seals
-Aluminum detent cover
-Factory set relief pressure
-2 or 3 line configuration
-Extended mounting studs
-Doweled construction for higher pressure
-Manual inspection of spool shaft and visual inspection of pump
-Test is conducted at 1000 RPMS
-Oil temperature is maintained at 100 degrees Fahrenheit
-Relief valve at full flow to not exceed 2300 PSI
In Order to Pass The Quality Test, The Pump Must Perform to The Following Specifications:
-Minimum flow of 25 GPM at 1500 PSI
-Relief valve maximum pressure differential (crack to full flow) to not exceed 250 PSI
-Minimum overall volumetric efficiency at 92% or more
-A copy of the computer generated test results is included with each pump
CROSS REFERENCES: 3089310416,
| G102RH | S2LD1-15-02BPRR | PMRDMD40020XR200 | PMR-DMD-400-20-XR-20 |
| S S-18554 | DMD-400-20-XR-200C8T | MPGS-18554 | ATX18554 |
| DMD-400-20-XR-200-RC | ATP18554 |
DUMP PUMP "G" SERIES D/M R/H R
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Flow Rate: 15 @ 1,000 RPM|37 @ 2,400 RPM U.S. Gallons per mi
Inlet Port Thread Diameter: 1.25 Inch
Input Shaft Diameter: .875 Inch
Input Spline Quantity: 13
Maximum RPM: 3,000 Revolutions per Minu
Maximum Working Pressure: 3,000 Pounds per Square In
Mounting Type: Direct
Pressure Port Diameter: .75 Inch
Pump Type: Gear
Return Port Diameter: .75 Inch
Rotation Direction: Right
Series Type: G Series
Shift linkage Type: Cable
System Type: 2 Line|3 Line
Taxonomy A: Hydraulics
Taxonomy B: Pumps & Motors
Taxonomy C: Dump Pumps
Taxonomy D: Assemblies
Taxonomy E: G Series
Thread Type: NPT
Warranty Period: 1 Year
Replaces:
- Chelsea: 3089310416
- OE Aftermarket: DMD-400-20-XR-200
- OE Aftermarket: G102RH
- OE Aftermarket: PMR-DMD-400-20-XR-20
- Genuine Newstar: PMR-DMD-400-20-XR-200
- Genuine Newstar: S-18554
- Genuine Newstar: S18554
- OE Aftermarket: S2LD1-15-02BPRR
DMD-400-20-XR-200 Cross Reference
- Chelsea: 3089310416
- OE Aftermarket: DMD-400-20-XR-200
- OE Aftermarket: G102RH
- OE Aftermarket: PMR-DMD-400-20-XR-20
- Genuine Newstar: PMR-DMD-400-20-XR-200
- Genuine Newstar: S-18554
- Genuine Newstar: S18554
- OE Aftermarket: S2LD1-15-02BPRR
