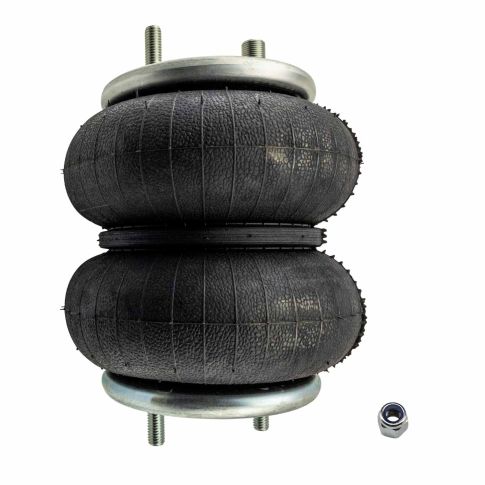

FIW013586884 Air Suspension Spring
Couldn't load pickup availability
AIR SPRING DC SB
Air Spring Type: Double Convoluted
Base Plate Material: Bead Plate Bottom
Bottom Plate Bolt Hole Quantity: 2
Bottom Plate Center to Center: 3.38 Inch
Bottom Plate Diameter: 6.31 Inch
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Design Height: 8 Inch
Load Rating at 100 PSI: 3200 Pound
Load Rating at 80 PSI: 2560 Pound
Maximum Diameter: 9.8 Inch
Maximum Height: 10.5 Inch
Minimum Height: 3.55 Inch
Natural Frequency: 108 Hertz
Taxonomy A: Air Springs/Bags
Top Plate Bolt Hole Quantity: 2
Top Plate Center to Center: 3.38 Inch
Top Plate Diameter: 6.31 Inch
Warranty Period: 1 Year or 100,000 Miles
Replaces:
- Link: 1103-0019
- Mack: 3040-WO13586884
- Triangle Air Springs: 4724
- Automann: 566.CT64712
- Continental-ContiTech: 64712
- Automann: ABSP2B12R-6884
- Triangle Air Springs: AS-4724
- OE Aftermarket: AS6884
- Continental-ContiTech: FD200-19
- Continental-ContiTech: FD20019724
- Freightliner: FIW013586884
- Firestone: FS6884
- Navistar: FSIW013586885
- Holland: G2296884500
- Barksdale: SP2B12R6884
- Volvo Truck: TDAFS6884
- Firestone: W01-358-6884
- Navistar: ZLM11030019
FIW013586884 Cross Reference
- Link: 1103-0019
- Mack: 3040-WO13586884
- Triangle Air Springs: 4724
- Automann: 566.CT64712
- Continental-ContiTech: 64712
- Automann: ABSP2B12R-6884
- Triangle Air Springs: AS-4724
- OE Aftermarket: AS6884
- Continental-ContiTech: FD200-19
- Continental-ContiTech: FD20019724
- Freightliner: FIW013586884
- Firestone: FS6884
- Navistar: FSIW013586885
- Holland: G2296884500
- Barksdale: SP2B12R6884
- Volvo Truck: TDAFS6884
- Firestone: W01-358-6884
- Navistar: ZLM11030019
