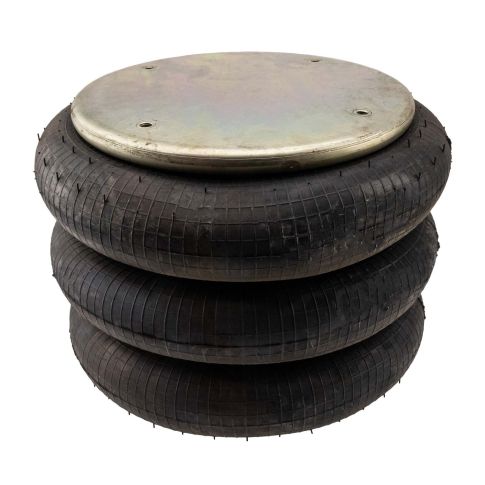

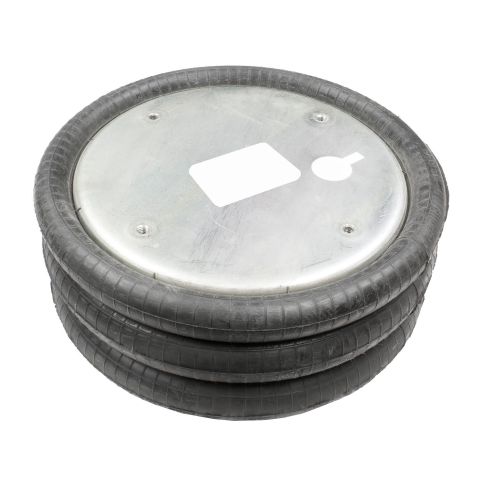

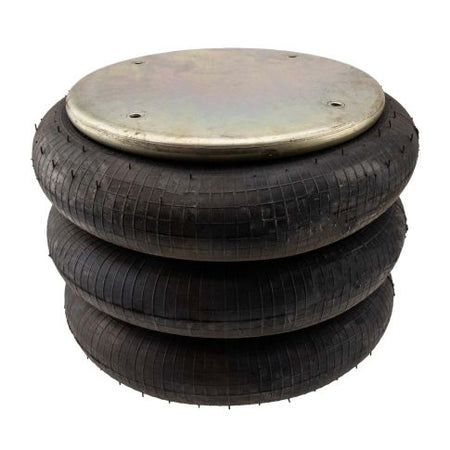

FS7798 Air Suspension Spring
Couldn't load pickup availability
AIR SPRING TC SB
Air Spring Type: Triple Convoluted
Base Plate Material: Aluminum
Bottom Plate Alignment: 45 Degrees
Bottom Plate Bolt Hole Quantity: 4

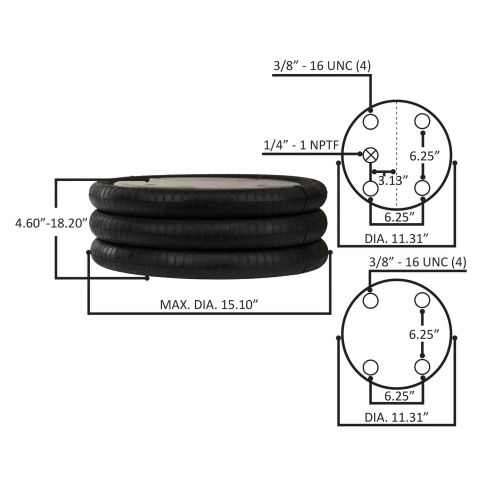

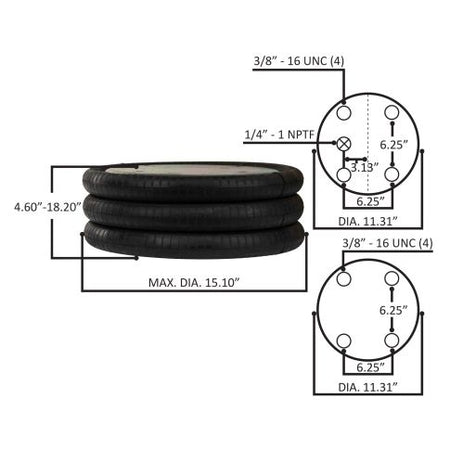

Bottom Plate Center to Center: 2.25 Inch
Bottom Plate Diameter: 11.31 Inch
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Design Height: 11 Inch
Load Rating at 100 PSI: 10500 Pound
Load Rating at 80 PSI: 8400 Pound
Maximum Diameter: 15.1 Inch
Maximum Height: 17.1 Inch
Minimum Height: 4.8 Inch
Natural Frequency: 82 Hertz
Taxonomy A: Air Springs/Bags
Taxonomy B: Trailer
Taxonomy C: Triple Convoluted
Top Plate Bolt Hole Quantity: 4
Top Plate Center to Center: 6.25 Inch
Top Plate Diameter: 11.31 Inch
Warranty Period: 1 Year or 100,000 Miles
Replaces:
- Ridewell Corp: 1003587798C
- Reyco Granning: 1613
- Dayton Parts: 354-7798
- Goodyear: 3B14-356
- Triangle Air Springs: 4329
- Holland: 57007798
- Firestone: 7798
- Automann: ABSP3B32R-7798
- Watson & Chalin: AS-0006
- Triangle Air Springs: AS-4329
- Euclid: E-FS7798
- Meritor: FS7798
- Continental-ContiTech: FT 530-32 329
- Continental-ContiTech: FT53032329
- Leland Brake & Wheel Parts: SC2029
- Torque: TR7798
- Firestone: W01-358-7798
- World American: WA01-7798
FS7798 Cross Reference
- Ridewell Corp: 1003587798C
- Reyco Granning: 1613
- Dayton Parts: 354-7798
- Goodyear: 3B14-356
- Triangle Air Springs: 4329
- Holland: 57007798
- Firestone: 7798
- Automann: ABSP3B32R-7798
- Watson & Chalin: AS-0006
- Triangle Air Springs: AS-4329
- Euclid: E-FS7798
- Meritor: FS7798
- Continental-ContiTech: FT 530-32 329
- Continental-ContiTech: FT53032329
- Leland Brake & Wheel Parts: SC2029
- Torque: TR7798
- Firestone: W01-358-7798
- World American: WA01-7798
