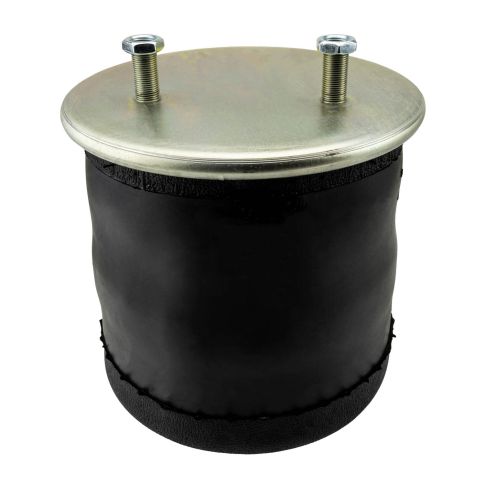

TDAFS8093 Air Suspension Spring
Couldn't load pickup availability
AIR SPRING - TRLR
Air Spring Type: Rolling Lobe
Base Plate Material: Plastic
Bottom Plate Bolt Hole Quantity: 1
Bottom Plate Diameter: 10.16 Inch
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Design Height: 12 Inch
Load Rating at 100 PSI: 10400 Pound
Load Rating at 80 PSI: 8300 Pound
Maximum Diameter: 10.62 Inch
Maximum Height: 22.3 Inch
Minimum Height: 8.6 Inch
Natural Frequency: 73 Hertz
Taxonomy A: Air Springs/Bags
Taxonomy B: Trailer
Taxonomy C: Rolling Lobe
Top Plate Bolt Hole Quantity: 1
Top Plate Center to Center: 5.5 Inch
Top Plate Diameter: 10.16 Inch
Warranty Period: 1 Year or 100,000 Miles
Replaces:
- Continental-ContiTech: 1110.5B-18P743
- Automann: 566.CT65368
- Continental-ContiTech: 65368
- Firestone: 8093
- Mack: 8235-FS8093
- Automann: AB1DK28N-8093
- Firestone: AS8093
- Hendrickson: C-23748
- Firestone: FS8093
- Navistar: HTSS23748
- Hendrickson: S-23748
- Hendrickson: S-24443
- Freightliner: TDAFS8093
- Firestone: W01-358-8093
TDAFS8093 Cross Reference
- Continental-ContiTech: 1110.5B-18P743
- Automann: 566.CT65368
- Continental-ContiTech: 65368
- Firestone: 8093
- Mack: 8235-FS8093
- Automann: AB1DK28N-8093
- Firestone: AS8093
- Hendrickson: C-23748
- Firestone: FS8093
- Navistar: HTSS23748
- Hendrickson: S-23748
- Hendrickson: S-24443
- Freightliner: TDAFS8093
- Firestone: W01-358-8093
