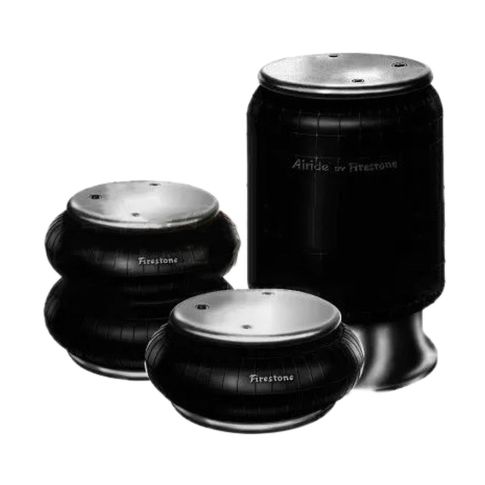

TDAFS9138 Air Suspension Spring
Couldn't load pickup availability
AIR SPRING
Air Spring Type: Rolling Lobe
Base Plate Material: Aluminum
Bottom Plate Alignment: Parallel
Bottom Plate Bolt Hole Quantity: 4
Bottom Plate Center to Center: 7.88 Inch
Bottom Plate Diameter: 10.25 Inch
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Design Height: 24 Inch
Maximum Diameter: 10.62 Inch
Maximum Height: 24 Inch
Minimum Height: 7.2 Inch
Taxonomy A: Air Springs/Bags
Top Plate Bolt Hole Quantity: 2
Top Plate Center to Center: 5.5 Inch
Top Plate Diameter: 11.31 Inch
Warranty Period: 1 Year or 100,000 Miles
Replaces:
- Continental-ContiTech: 1110.5-19A432
- Automann: 566.CT64392
- Continental-ContiTech: 64392
- Mack: 8235-FS9138
- Triangle Air Springs: 8432
- Holland: 90557111
- Firestone: 9138
- Automann: AB1DK28B-9138
- Triangle Air Springs: AS-8432
- Firestone: AS9138
- Euclid: EF-FS9138
- Firestone: FS9138
- Barksdale: RL91380
- Freightliner: TDAFS9138
- Firestone: W01-358-9138
TDAFS9138 Cross Reference
- Continental-ContiTech: 1110.5-19A432
- Automann: 566.CT64392
- Continental-ContiTech: 64392
- Mack: 8235-FS9138
- Triangle Air Springs: 8432
- Holland: 90557111
- Firestone: 9138
- Automann: AB1DK28B-9138
- Triangle Air Springs: AS-8432
- Firestone: AS9138
- Euclid: EF-FS9138
- Firestone: FS9138
- Barksdale: RL91380
- Freightliner: TDAFS9138
- Firestone: W01-358-9138
